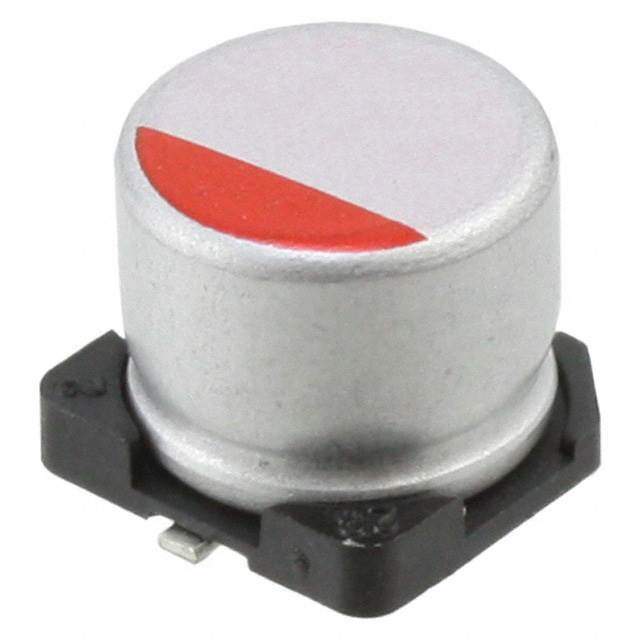

RHA1C151MCN1GS

HA 系列 16 v 150 uf 8x6.7 mm 105"c 低 ESR V-Chip SMD 铝 聚合物 电容

铝电解器

得捷:
CAP ALUM POLY 150UF 20% 16V SMD

立创商城:
150uF ±20% 16V

艾睿:
Thanks to Nichicon and their RHA1C151MCN1GS conductive polymer aluminum solid capacitor, you can feel rest assured that your integrated circuit will be protected from sudden changes in the load. It can withstand a voltage of 16 VDC. It has 2 terminals. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product is 6.7 mm tall with a diameter of 8 mm. Its leakage current is 700@2Min μA.

安富利:
Cap Aluminum 150uF 16V 20% 8 X 6.7mm Cylindrical 0.022 Ohm 3220mA 2000 hr 105°C T/R

Verical:
Cap Aluminum Polymer 150uF 16VDC 20% 8 X 6.7mm SMD 0.022 Ohm 3220mA 2000h 105C T/R

Newark:
# NICHICON  RHA1C151MCN1GS  Electrolytic Capacitor, 150 µF, 16 V, HA Series, Radial Can - SMD, -55 °C
