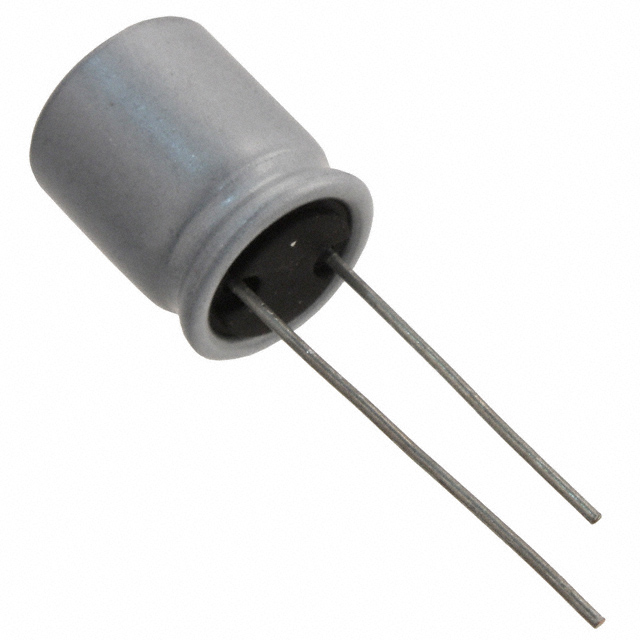

R7 系列 6.3 V 330 uF ±20 % 径向 聚合物 铝 电解电容
Feel rest assured that "s conductive polymer aluminum solid capacitors can help regulate any voltage spikes or drops that may harm sensitive circuitry. It can withstand a voltage of 6.3 VDC. Users like its long lead wire form. It has 2 terminals. This part has a lead diameter of 0.6 mm. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 105 °C. This product"s terminal pitch is 5 mm. It has a tolerance of 20%. This product is 12.5 mm tall with a diameter of 10 mm. The RR70J331MDN1 conductive polymer aluminum solid capacitor has a radial termination style. Its leakage current is 104@2Min μA.
额定电压DC 6.30 V
电容 330 µF
等效串联电阻ESR 7 mΩ
容差 ±20 %
纹波电流 6.1 A
纹波电流高频 610mA @120Hz
纹波电流低频 6.1A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
高度 12.5 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
寿命(小时) 2000h @105℃
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RR70J331MDN1 Nichicon 尼吉康 | 当前型号 | 当前型号 |
RR70J331MDN1PH 尼吉康 | 类似代替 | RR70J331MDN1和RR70J331MDN1PH的区别 |
RR71C331MDN1 尼吉康 | 功能相似 | RR70J331MDN1和RR71C331MDN1的区别 |
