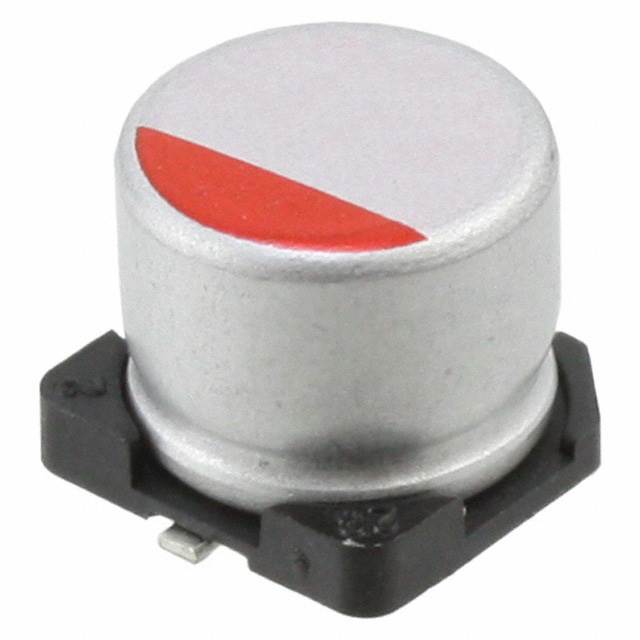

Cap Aluminum Polymer 560uF 6.3VDC 20% 8 X 7.7mm SMD 0.009Ω 4500mA 2000H 105℃ T/R
Ensure your integrated circuits operate safely and are protected from unexpected voltage spikes using one of these conductive polymer aluminum solid capacitors from . It can withstand a voltage of 6.3 VDC. It has 2 terminals. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 7.7 mm tall with a diameter of 8 mm. Its leakage current is 1058@2Min μA.
额定电压DC 6.3 V
电容 560 µF
等效串联电阻ESR 9 mΩ
容差 ±20 %
纹波电流 4500 mA
纹波电流低频 4.5 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Surface Mount

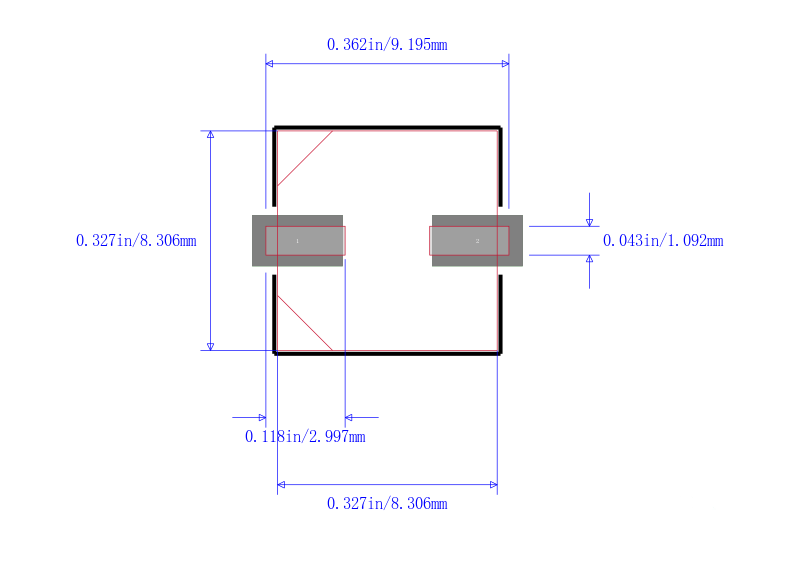

封装 SMD
长度 7.7 mm
高度 7.7 mm
直径 8.00 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 2000 h
制造应用 -, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RHA0J561MCN1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
APXF6R3ARA561MH80G 贵弥功 | 功能相似 | RHA0J561MCN1GS和APXF6R3ARA561MH80G的区别 |
