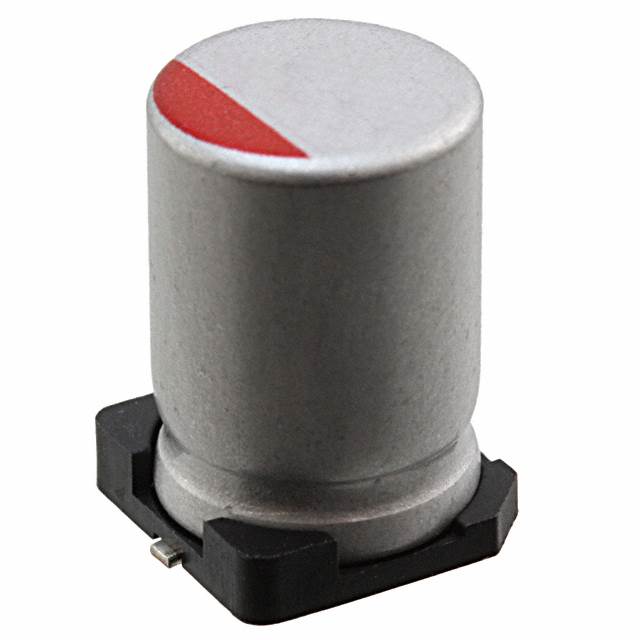

Cap Aluminum Polymer 1500uF 2.5VDC 20% 8 X 11.7mm SMD 0.09Ω 5400mA 2000H 105℃ T/R
This conductive polymer aluminum solid capacitor from is able to support a change in the load in an integrated circuit. It can withstand a voltage of 2.5 VDC. It has 2 terminals. This product is 11.7 mm tall with a diameter of 8 mm. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its leakage current is 1125@2Min μA. It has a tolerance of 20%.
额定电压DC 2.5 V
电容 1500 µF
等效串联电阻ESR 9 mΩ
容差 ±20 %
纹波电流 5400 mA
纹波电流高频 540mA @120Hz
纹波电流低频 5.4A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装 SMD
长度 11.7 mm
高度 11.7 mm
直径 8.00 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 2000 h
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RHS0E152MCN1GS Nichicon 尼吉康 | 当前型号 | 当前型号 |
PCJ0G152MCL4GS 尼吉康 | 功能相似 | RHS0E152MCN1GS和PCJ0G152MCL4GS的区别 |
PCJ0E152MCL1GS 尼吉康 | 功能相似 | RHS0E152MCN1GS和PCJ0E152MCL1GS的区别 |
