60毫安， 5.0V ，降压/升压充电泵采用ThinSOT -23和ThinQFN 60mA, 5.0V, Buck/Boost Charge Pump in ThinSOT-23 and ThinQFN
Have complete control with different voltages generated by direct current with this charge pump voltage doubler from Texas Instruments. With an output that has a voltage of 3.3 V, this is power management at its best. Its output produces a current of 30Min mA. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a minimum operating supply voltage of 1.8 V and a maximum of 5.5 V. This inverting charge pump has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 1
输出电压 3.3 V
输出电流 30 mA
针脚数 6
静态电流 65.0 µA
调节输出数 1
开关频率 1 MHz
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电压Max 3.3 V
输出电压Min 3.3 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
输入电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 6

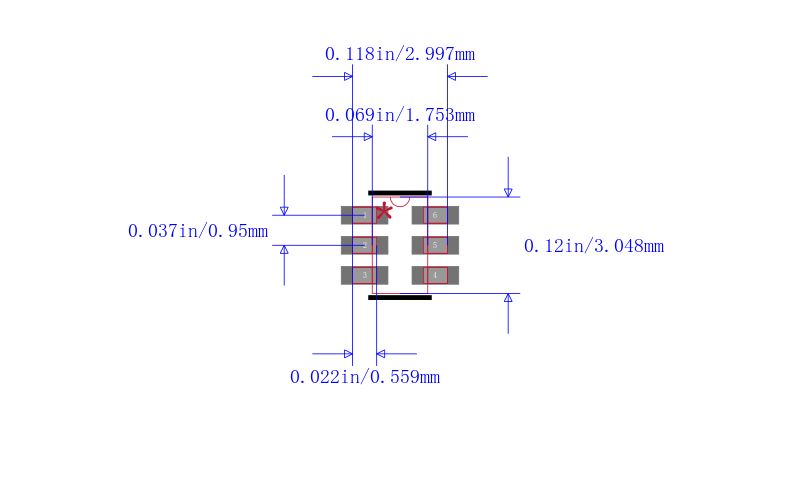

封装 SOT-23-6
封装 SOT-23-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
REG710NA-3.3/3K TI 德州仪器 | 当前型号 | 当前型号 |
REG710NA-3.3/250 德州仪器 | 完全替代 | REG710NA-3.3/3K和REG710NA-3.3/250的区别 |
REG710NA-3.3/250G4 德州仪器 | 类似代替 | REG710NA-3.3/3K和REG710NA-3.3/250G4的区别 |
REG710NA-3.3/3KG4 德州仪器 | 类似代替 | REG710NA-3.3/3K和REG710NA-3.3/3KG4的区别 |
