RL48-19/12

EBM PAPST  RL48-19/12  扇风机, 离心, 径向, 前倾式, RL48DC系列, Flatpak, 12 VDC, 76 mm, 27 mm, 16.5 cu.ft/min

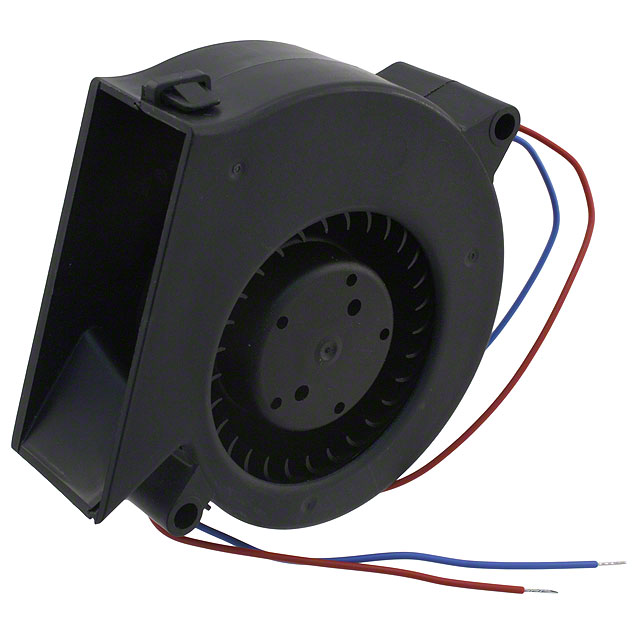

The is a 12VDC Centrifugal Compact Fan with speed signal, ball bearing and wire leaded power connection. Scroll housing of fibreglass-reinforced plastic, fibreglass-reinforced plastic impeller. Axial air intake, centrifugal air exhaust out of the outlet direction of air flow with single strands 26AWG, TR 64 leads with forward-curved impeller. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

.

4400RPM Speed rating

.

4.6W Rated power

.

-20 to 70°C Maximum ambient temperature range

.

Protected against reverse polarity and locking

.

Electronic blocking protection
