2.5V电压基准
Even in the event of large power supply variations, this voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 2.5 V, this is power management at its best. It has an initial accuracy of 2%. By working with a maximum input voltage of 7 V, this is the best way to control the power in your circuit. Maintain a constant voltage level with a load regulation of 100uV/mA and line regulation of 325uV/V. This voltage reference circuit supports series topology. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage reference circuit has an operating temperature range of -40 °C to 125 °C. It runs with a maximum temperature coefficient of 100ppm/°C.
容差 ±2 %
输入电压DC 2.55V ~ 5.50V
输出电压 2.5 V
输出电流 25 mA
供电电流 59 µA
通道数 1
针脚数 3
静态电流 42.0 µA
输入电压Max 7 V
输出电压Max 2.5 V
输出电压Min 2.5 V
输出电流Max 25 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.55V ~ 5.5V
安装方式 Surface Mount
引脚数 3

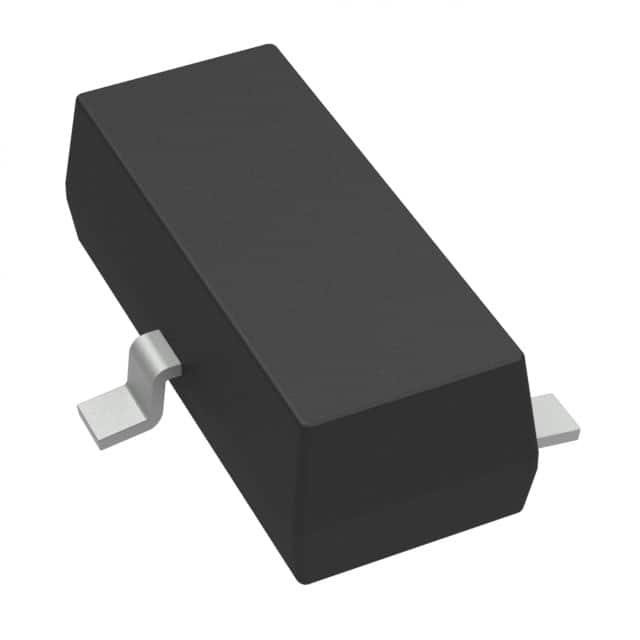

封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 125℃ TA
温度系数 ±35 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REF2925AIDBZR TI 德州仪器 | 当前型号 | 当前型号 |
REF2925AIDBZT 德州仪器 | 完全替代 | REF2925AIDBZR和REF2925AIDBZT的区别 |
REF2925AIDBZTG4 德州仪器 | 完全替代 | REF2925AIDBZR和REF2925AIDBZTG4的区别 |
REF2925AIDBZRG4 德州仪器 | 完全替代 | REF2925AIDBZR和REF2925AIDBZRG4的区别 |
