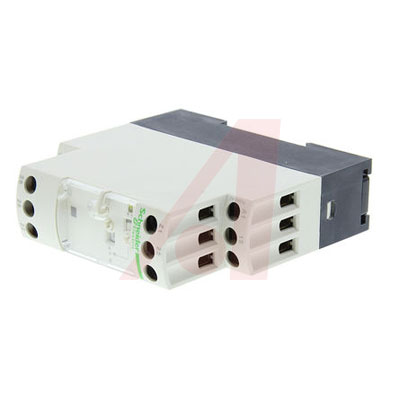

RE7RB13MW

SCHNEIDER ELECTRIC  RE7RB13MW  模拟定时器, RE7系列, 通电延时/定时, 0.05 s, 10 min, 7 时间范围, 2转换继电器

The RE7 series adjustable off-delay Timing Relay offers 0.05 to 1 seconds timing range at 240VAC/DC. It features silver with gold flashed contacts and screw terminals connections. This timing relays, to create simple hard-wired logic automated system cycles or to complement industrial programmable controllers. The accurate adjustments and legible wiring diagrams on the side of Zelio time relays make them simple, fast and easy to set up and with a choice in the number of outputs and either screw or spring connection terminals, Zelio time is the flexible and high performance solution.

.

Multifunction

.

Can be operated in any position without derating

.

0.6 to 1.1N-m Tightening torque

.

1 second minimum Pulse duration

.

50ms Reset time

.

20000000 cycles Mechanical durability

.

IP50 Housing protection rating

.

IP20 Terminals protection rating
