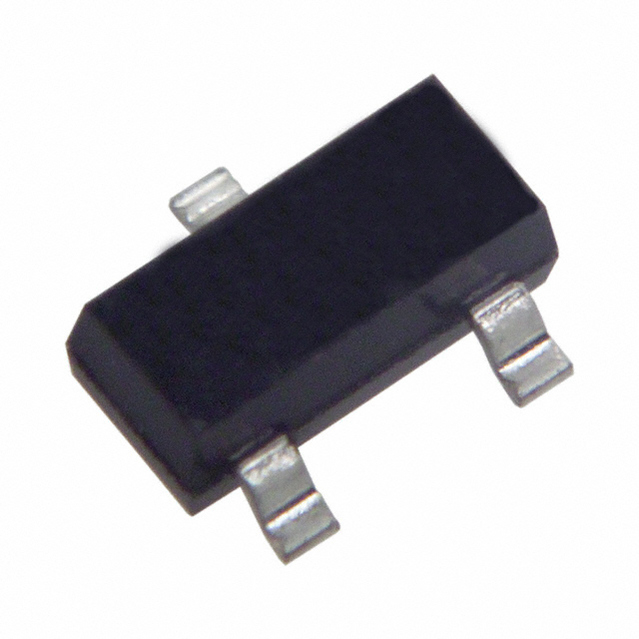

TEXAS INSTRUMENTS REF2925AIDBZT 电压基准, 精密, 低功率, 系列 - 固定, REF2925系列, 2.5V, SOT-23-3
串联电压参考,固定,2.5V 至 3.3V
得捷:
IC VREF SERIES 2% SOT23-3
立创商城:
串联 25mA
德州仪器TI:
2.5-V, 100-ppm/°C, 50-µA in 3-pin SOT-23 package series bandgap voltage reference
欧时:
### 串联电压参考,固定,2.5V 至 3.3V### 电压参考,Texas Instruments精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑,并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。
e络盟:
TEXAS INSTRUMENTS REF2925AIDBZT 电压基准, 精密, 低功率, 系列 - 固定, REF2925系列, 2.5V, SOT-23-3
艾睿:
Even in the event of large power supply variations, this REF2925AIDBZT voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. With an output that has a voltage of 2.5 V, this is power management at its best. Supply your circuit with sufficient power by implementing this, which does not exceed 7 V. It has an initial accuracy of 2%. Operate at a constant current by utilizing the load regulation of 100uV/mA and line regulation of 325uV/V. This voltage reference circuit supports series topology. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It runs with a maximum temperature coefficient of 100ppm/°C. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
V-Ref Precision 2.5V 25mA 3-Pin SOT-23 T/R
Chip1Stop:
Series Voltage Reference 2.5V 100ppm/Degrees C, 50uA in SOT23-3 Series Bandgap Voltage Reference V-Ref Precision 2.5V 25mA 3-Pin SOT-23 T/R
Verical:
V-Ref Precision 2.5V 25mA 3-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS REF2925AIDBZT Voltage Reference, Precision, Low Power, Series - Fixed, REF2925 Series, 2.5V, SOT-23-3
力源芯城:
2.5V电压基准
DeviceMart:
IC VREF SERIES PREC 2.5V SOT23-3
Win Source:
Series Voltage Reference IC ±2% 25mA TO-236-3, SC-59, SOT-23-3
容差 ±2 %
输入电压DC 2.55V ~ 5.50V
输出电压 2.5 V
输出电流 25 mA
供电电流 59 µA
通道数 1
针脚数 3
静态电流 42.0 µA
输入电压Max 7 V
输出电压Max 2.55 V
输出电压Min 2.5 V
输出电流Max 25 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 2.55V ~ 5.5V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REF2925AIDBZT TI 德州仪器 | 当前型号 | 当前型号 |
REF2925AIDBZR 德州仪器 | 完全替代 | REF2925AIDBZT和REF2925AIDBZR的区别 |
REF2925AIDBZTG4 德州仪器 | 完全替代 | REF2925AIDBZT和REF2925AIDBZTG4的区别 |
REF2925AIDBZRG4 德州仪器 | 完全替代 | REF2925AIDBZT和REF2925AIDBZRG4的区别 |
