REF3030AIDBZR

3V,50℃,50uASOT23-3封装电压基准

DESCRIPON

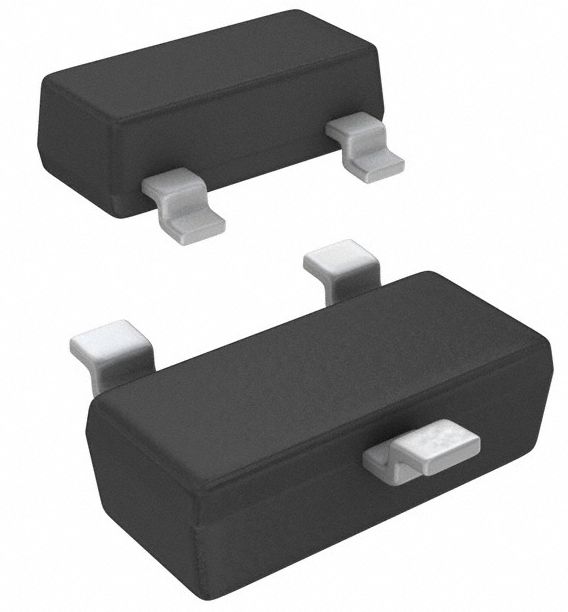

The REF30xx is a precision, low power, low voltage dropout voltage reference family available in a tiny SOT23-3.

The REF30xx small size and low power consumption 50µA max make it ideal for portable and battery-powered applications. The REF30xx does not require a load capacitor, but is

stable with any capacitive load.

Unloaded, the REF30xx can be operated with supplies within 1mV of output voltage. All models are specified for the wide temperature range, –40°C to +125°C.

FEATURES

● MicroSIZE PACKAGE: SOT23-3

●LOW DROPOUT: 1mV

●HIGH OUTPUT CURRENT: 25mA

●HIGH ACCURACY: 0.2%

●LOW IQ: 50µA max

● EXCELLENT SPECIFIED DRIFT PERFORMANCE:

    50ppm/°C max from 0°C to +70°C

    75ppm/°C max from –40°C to +125°C

APPLICATIONS

●PORTABLE, BATTERY-POWERED EQUIPMENT

●DATA ACQUISITION SYSTEMS

●MEDICAL EQUIPMENT

●HAND-HELD TEST EQUIPMENT
