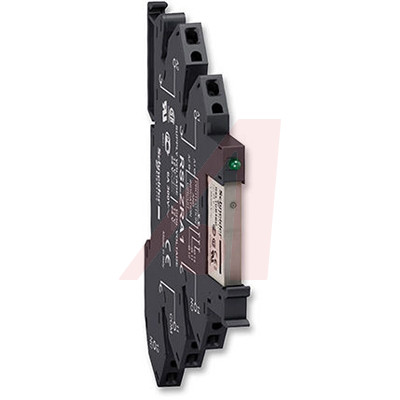

RSL1PVPU

SCHNEIDER ELECTRIC  RSL1PVPU  通用继电器, RSL系列, 接口, SPDT, 60 VDC, 6 A

The RSL series Electromechanical Plug-in Slim Interface Relay offers the advantages of compact size and modular design. Its slim width 6mm saves space when mounting on a rail at the back of an enclosure. A single reference comprising a standard relay mounted on its socket pre-assembled range. The socket includes a protection circuit against reverse polarity and surge and an LED indicator as standard. Two types of connector are available for wire connection screw connectors or spring terminals. This pre-assembled solution covers a wide range of operating voltages from 12 to 230V. The relay standard or low level and the socket are selected, as required, according to the operating voltage of the application. For maintenance, an RSL slim relay can be replaced without disconnecting the socket wiring.

.

Lever for retaining or easy withdrawal of the relay from its socket

.

Sockets - Wire connection by screw connectors or spring terminals

.

All sockets have a built-in protection circuit and LED indicator

.

6A Standard relay with 1C/O contact

.

12V Minimum switching voltage

.

120mW Minimum switching capacity

.

20500R DC at 23°C ±10% Average resistance

.

IP40 Protection rating
