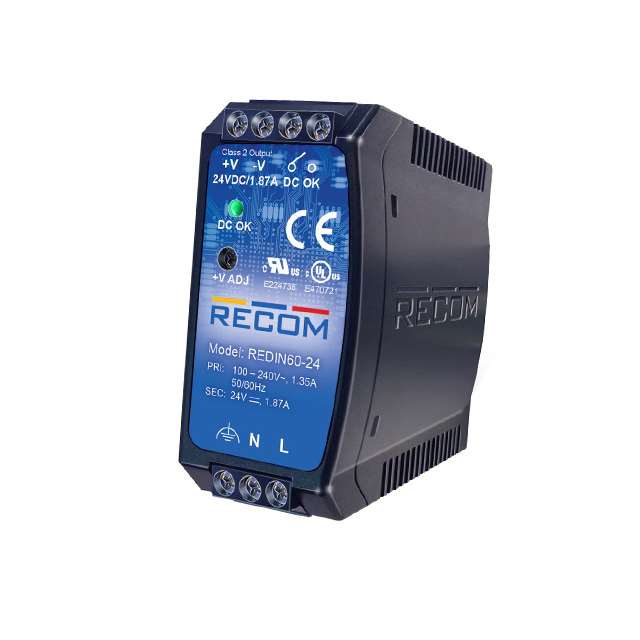

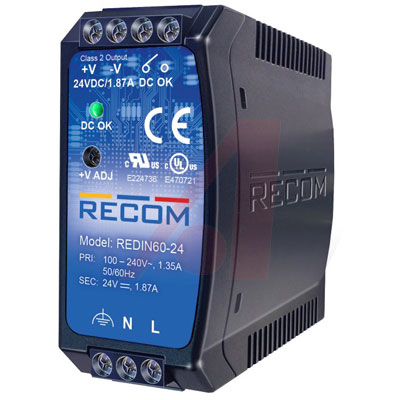

RECOM POWER REDIN60-12 交流/直流电源, DIN轨, 固定/可调, 85 V, 264 V, 60 W, 12 V, 5 A
The is a DIN-rail mounted Power Supply uses high reliability components to give a long, trouble-free life. The power supply can be end mounted to save space or side mounted for use in low-profile cabinets. Relay contacts simplify DC OK monitoring and the units can deliver 80W start-up power.
- .
- Short-circuit, overvoltage, overcurrent and over-temperature protection
- .
- 100% Full load burn-in test
- .
- DC OK indicator LED with relay contacts
- .
- Cooling by free air convection, 5000m operation
- .
- 12 to 15VDC Output trimming voltage
- .
- 85% Typical efficiency
- .
- 18800µF Maximum capacitive load
额定功率 60 W
输出接口数 1
输出电压 12 V
输出电流 5 A
输出功率 60 W
隔离电压 3.75 kV
输入电压DC Max 375 V
输入电压AC Max 264 v
输入电压AC Min 85 v
输出电流Max 5 A
输入电流Min 1.8 A
输出功率Max 60 W
工作温度Max 70 ℃
工作温度Min -20 ℃
输入电压 85VAC ~ 264VAC
安装方式 DIN Rail
引脚数 7
长度 101.2 mm
宽度 45.1 mm
高度 92 mm
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Box
制造应用 电源管理, ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
