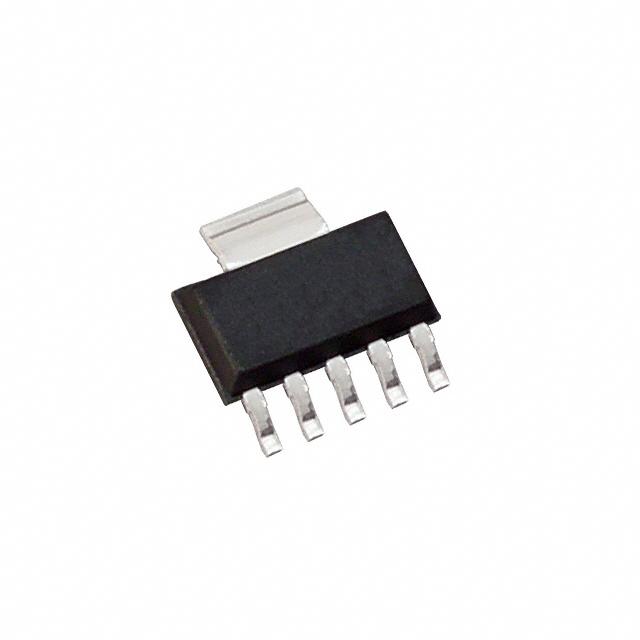

TEXAS INSTRUMENTS REG102GA-5 固定电压稳压器, LDO, 1.8V至10V, 150mV压差, 5V输出, 250mA输出, SOT-223-6
LDO(低压降)线性稳压器,250mA,Texas Instruments
立创商城:
REG102GA-5
德州仪器TI:
250-mA, 10-V, low-dropout voltage regulator with enable
得捷:
IC REG LINEAR 5V 250MA SOT223-6
欧时:
Texas Instruments REG102GA-5 LDO 稳压器, 5 V输出, 250mA最大输出, ±1.5%精确度, 1.8 → 10 V输入
贸泽:
低压差稳压器 DMOS 250 mA LDO Reg
e络盟:
TEXAS INSTRUMENTS REG102GA-5 固定电压稳压器, LDO, 1.8V至10V, 150mV压差, 5V输出, 250mA输出, SOT-223-6
艾睿:
Control the voltage level of your circuit with this LDO REG102GA-5 linear regulator from Texas Instruments. Its typical dropout voltage at current is 0.004@5mA|0.15@250mA V. It has an overall accuracy of ±1.5 %. This voltage regulation device&s;s single output can produce a current up to 0.25 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.8 V that does not exceed 10 V. With a fixed output that has a voltage of 5 V, this is power management at its best. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.01@5mA|0.22@250mA V.
安富利:
LDO Regulator Pos 5V 0.25A 6-Pin5+Tab SOT-223 Tube
Chip1Stop:
LDO Regulator Pos 5V 0.25A 6-Pin5+Tab SOT-223 Tube
Verical:
LDO Regulator Pos 5V 0.25A 6-Pin5+Tab SOT-223 Tube
Newark:
# TEXAS INSTRUMENTS REG102GA-5 Fixed LDO Voltage Regulator, 1.8V to 10V, 150mV Dropout, 5Vout, 250mAout, SOT-223-6
DeviceMart:
IC REG LDO 5V .25A SOT-223-6
Win Source:
IC REG LDO 5V 0.25A SOT223-6
输出接口数 1
输入电压DC 10.0V max
输出电压 5 V
输出电流 250 mA
供电电流 500µA ~ 800µA
针脚数 6
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 150 mV
调节输出数 1
输入电压Max 10 V
输入电压Min 1.8 V
输出电压Min 5 V
输出电流Max 0.25 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 6
封装 SOT-223-6
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 SOT-223-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REG102GA-5 TI 德州仪器 | 当前型号 | 当前型号 |
REG102GA-5/2K5G4 德州仪器 | 完全替代 | REG102GA-5和REG102GA-5/2K5G4的区别 |
REG102GA-5G4 德州仪器 | 类似代替 | REG102GA-5和REG102GA-5G4的区别 |
REG102GA-5/2K5 德州仪器 | 类似代替 | REG102GA-5和REG102GA-5/2K5的区别 |
