RC 系列 0402 62.5 mW 6.8 Ohms 5% ±200 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 6.8 OHM 5% 1/16W 0402
立创商城:
6.8Ω ±5% 62.5mW
艾睿:

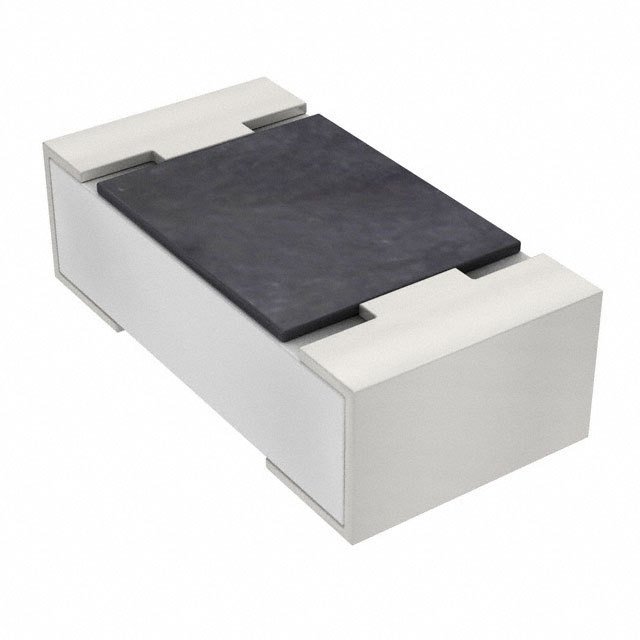

Use this RC0402JR-076R8L fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This durable part has a power rating of 0.063 1/16 W. This product has a resistance value of 6.8 Ohm. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with thick film technology. It has a tolerance of 5%. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This part has an operating temperature of -55 to 155 °C.
安富利:
Res Thick Film 0402 6.8 Ohm 5% 1/16W ±200ppm/°C Molded SMD Paper T/R
Chip1Stop:
Res Thick Film 0402 6.8 Ohm 5% 1/16W ±200ppm/℃ Molded SMD Paper T/R
Verical:
Res Thick Film 0402 6.8 Ohm 5% 0.063W1/16W ±200ppm/C Pad SMD T/R
儒卓力:
**RC0402 6,8R 5% 0,063W **
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.063 W
产品系列 RC
电阻 6.8 Ω
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±5 %
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402JR-076R8L Yageo 国巨 | 当前型号 | 当前型号 |
RK73B1ETTP6R8J KOA Speer | 功能相似 | RC0402JR-076R8L和RK73B1ETTP6R8J的区别 |
AR0402JR-076R8L 国巨 | 功能相似 | RC0402JR-076R8L和AR0402JR-076R8L的区别 |
