DMOS 400毫安低压差稳压器 DMOS 400mA Low-Dropout Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 400mA 8-VSSOP
得捷:
IC REG LINEAR 2.5V 400MA 8VSSOP
立创商城:
REG113EA-2.5/2K5
德州仪器TI:
400-mA, 10-V, low-dropout voltage regulator with enable
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this LDO REG113EA-2.5/2K5 linear regulator from Texas Instruments to control your voltage levels! It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.25@400mA|0.004@5mA V. This voltage regulation device&s;s single output can produce a current up to 0.4 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.8 V and no higher than 10 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive. The maximum dropout voltage is 0.325@400mA|0.01@5mA V.
安富利:
LDO Regulator Pos 2.5V 0.4A 8-Pin VSSOP T/R
Chip1Stop:
LDO Regulator Pos 2.5V 0.4A 8-Pin VSSOP T/R
Verical:
LDO Regulator Pos 2.5V 0.4A 8-Pin VSSOP T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 2.5V 400mA 8-VSSOP
输出接口数 1
输入电压DC 10.0V max
输出电压 2.5 V
输出电流 400 mA
供电电流 500µA ~ 1mA
静态电流 400 µA
输出电容类型 Ceramic
跌落电压 0.25V @400mA
调节输出数 1
输入电压Max 10 V
输入电压Min 1.8 V
输出电压Min 2.5 V
输出电流Max 0.4 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±1.5 %
输入电压 ≤10 V
安装方式 Surface Mount
引脚数 8

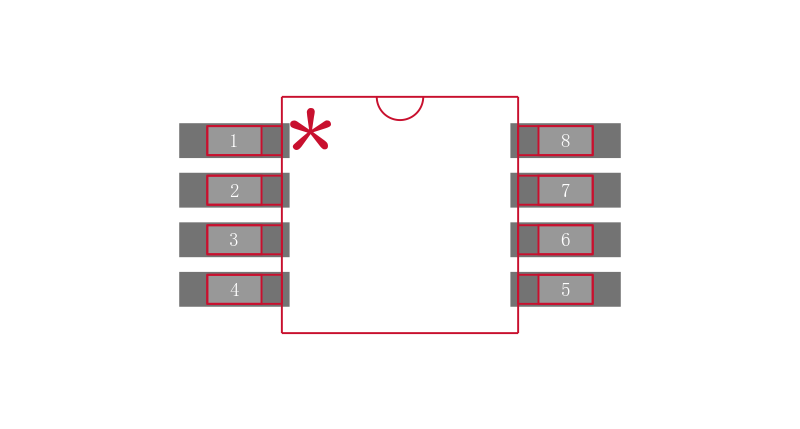

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REG113EA-2.5/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
REG113EA-2.5/2K5G4 德州仪器 | 完全替代 | REG113EA-2.5/2K5和REG113EA-2.5/2K5G4的区别 |
REG113EA-2.5/250 德州仪器 | 类似代替 | REG113EA-2.5/2K5和REG113EA-2.5/250的区别 |
REG113EA-2.5/250G4 德州仪器 | 类似代替 | REG113EA-2.5/2K5和REG113EA-2.5/250G4的区别 |
