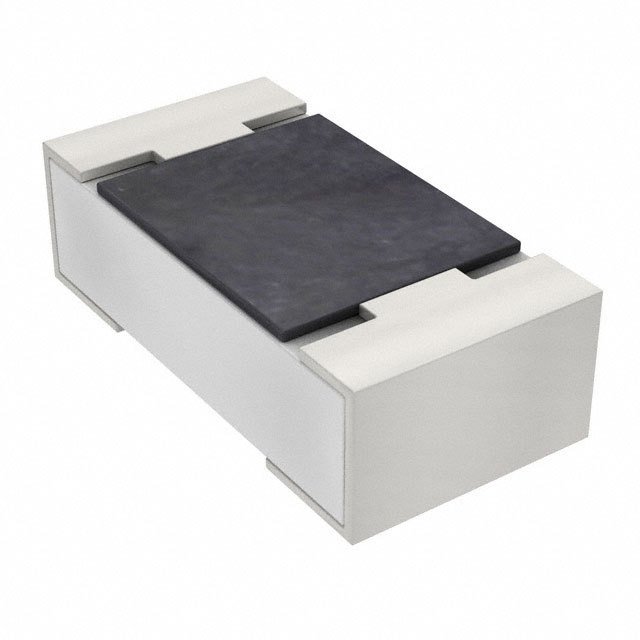

RC 系列 0402 62.5 mW 3 MOhms 5% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 3M OHM 5% 1/16W 0402
立创商城:
3MΩ ±5% 62.5mW
艾睿:
Use this RC0402JR-073ML fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This part has a power rating of 0.063 1/16 W. This product has a resistance value of 3M Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. It has a tolerance of 5%.
安富利:
Res Thick Film 0402 3M Ohm 5% 1/16W ±100ppm/°C Molded SMD SMD Paper T/R
Chip1Stop:
Res Thick Film 0402 3M Ohm 5% 0.063W1/16W ±100ppm/℃ Molded SMD Paper T/R
Verical:
Res Thick Film 0402 3M Ohm 5% 0.063W1/16W ±100ppm/C Epoxy SMD T/R
儒卓力:
**RC0402 3,0M 5% 0,063W **
额定电压DC 50.0 V
容差 ±5 %
额定功率 0.063 W
产品系列 RC
电阻 3 MΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±5 %
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402JR-073ML Yageo 国巨 | 当前型号 | 当前型号 |
9C04021A3004JLHF3 国巨 | 完全替代 | RC0402JR-073ML和9C04021A3004JLHF3的区别 |
AR0402JR-073ML 国巨 | 功能相似 | RC0402JR-073ML和AR0402JR-073ML的区别 |
232270512305 国巨 | 功能相似 | RC0402JR-073ML和232270512305的区别 |
