Inductor Power Unshielded Drum Core 3.3mH 10% 1kHz Ferrite 120mA 6.16Ω DCR RDL Box
3.3 mH 无屏蔽 绕线 器 120 mA 6.16 欧姆最大 径向,垂直圆柱(开放)
立创商城:
3.3mH ±10% 120mA 6.16Ω
得捷:
FIXED IND 3.3MH 120MA 6.16OHM TH
艾睿:

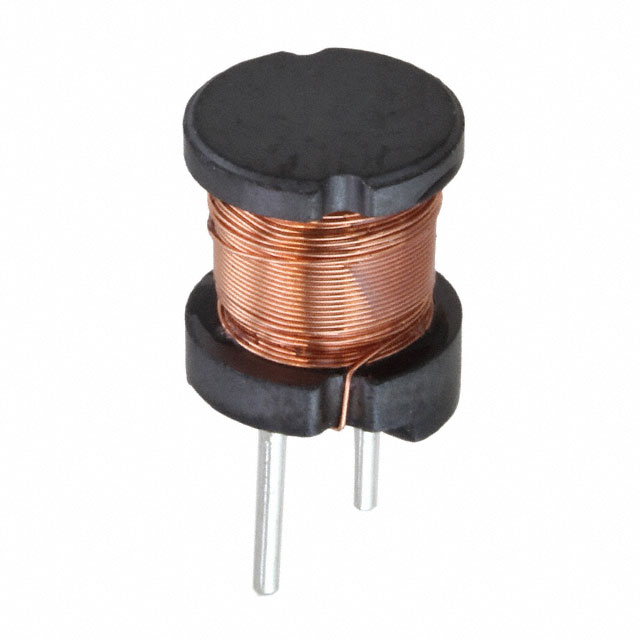

If you need a convenient and easily removable inductor for your electrical design then consider this power RCH895NP-332K leaded inductor from Sumida Corporation. This part has a pitch of 5 mm. This leaded inductor has an operating temperature range of -40 °C to 100 °C. This product is 9.5 mm tall with a diameter of 8.3 mm. This leaded inductor has a maximum DC current of 120m A with a maximum resistance of 6.16 Ohm. It has a tolerance of 10%. Its test frequency is 1K Hz. It has an inductance of 3.3m H. This device utilizes drum core technology.
安富利:
Ind Power Unshielded Wirewound 3.3mH 10% 1KHz Ferrite 120mA RDL Box
儒卓力:
**RCH895NP 3300uH 120mA 10% **
额定电流 120 mA
容差 ±10 %
电感 3300 µH
测试频率 1 kHz
电阻DC) ≤6.16 Ω
工作温度Max 100 ℃
工作温度Min -40 ℃
电阻DC Max 6.16 Ω
安装方式 Through Hole
封装 8.3 mm x 8.3 mm x 9.5 mm
宽度 8.3 mm
高度 9.5 mm
封装 8.3 mm x 8.3 mm x 9.5 mm
重量 1.8 g
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 无铅
ECCN代码 EAR99
