3.3V
Even in the event of large power supply variations, this voltage reference power management device from Texas Instruments can produce and maintain a precise DC voltage. It has an initial accuracy of 0.2%. Use this part at voltages lower than 7 V. With an output that has a voltage of 3.3 V, this is power management at its best. This voltage reference circuit supports series topology. Operate at a constant current by utilizing the load regulation of 50uV/mA and line regulation of 65ppm/V. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 125 °C. It runs with a maximum temperature coefficient of 20ppm/°C.
容差 ±0.2 %
输入电压DC 3.35V ~ 5.50V
输出电压 3.3 V
输出电流 10 mA
供电电流 135 µA
通道数 1
静态电流 100 µA
输入电压Max 7 V
输出电压Max 3.3 V
输出电压Min 3.3 V
输出电流Max 10 mA
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±0.2 %
输入电压 3.35V ~ 5.5V
安装方式 Surface Mount
引脚数 3

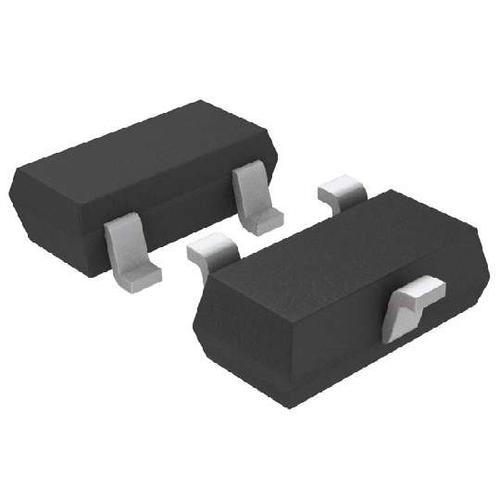

封装 SOT-23-3
长度 2.92 mm
宽度 1.3 mm
高度 1 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃ TA
温度系数 ±20 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REF3133AIDBZR TI 德州仪器 | 当前型号 | 当前型号 |
REF3133AIDBZT 德州仪器 | 完全替代 | REF3133AIDBZR和REF3133AIDBZT的区别 |
REF3133AIDBZTG4 德州仪器 | 完全替代 | REF3133AIDBZR和REF3133AIDBZTG4的区别 |
REF3133AIDBZRG4 德州仪器 | 完全替代 | REF3133AIDBZR和REF3133AIDBZRG4的区别 |
