SMD电阻器/芯片电阻器
SMD器/芯片电阻器
得捷:
RES 73.2K OHM 1% 1/16W 0402
立创商城:
73.2kΩ ±1% 62.5mW
贸泽:
Thick Film Resistors - SMD 73.2K OHM 1%
艾睿:

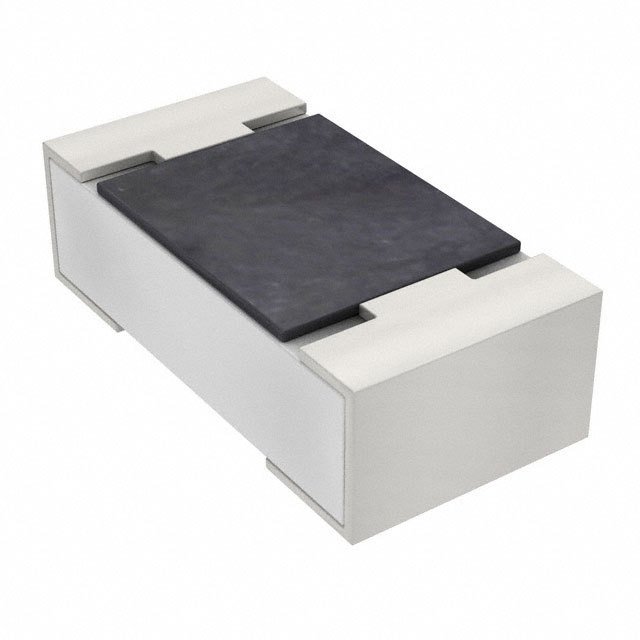

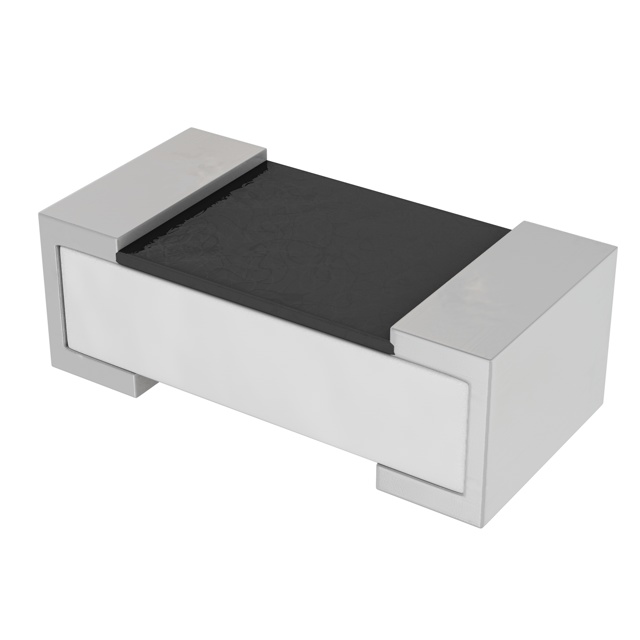

The RC0402FR-0773K2L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This part has a power rating of 0.063 1/16 W. This product has a resistance value of 73.2K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This device utilizes thick film technology.
安富利:
Res Thick Film 0402 73.2K Ohm 1% 1/16W ±100ppm/°C Molded SMD Paper T/R
Verical:
Res Thick Film 0402 73.2K Ohm 1% 0.063W1/16W ±100ppm/C Epoxy Pad SMD T/R
儒卓力:
**RC0402 73,2K 1% 0,063W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 73.2 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
封装公制 0402
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 0402
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402FR-0773K2L Yageo 国巨 | 当前型号 | 当前型号 |
RK73H1ETTP7322F KOA Speer | 功能相似 | RC0402FR-0773K2L和RK73H1ETTP7322F的区别 |
AR0402FR-0773K2L 国巨 | 功能相似 | RC0402FR-0773K2L和AR0402FR-0773K2L的区别 |
