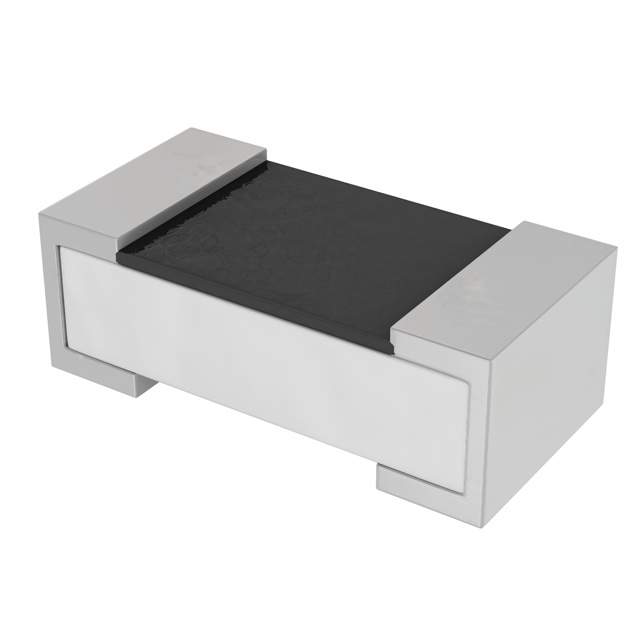

YAGEO RC0402FR-071ML 厚膜电阻, 1MΩ, 62.5MW, 1%, 整卷
SMD器/芯片电阻器
欧时:
Yageo RC 系列 0.063W 1MΩ 厚膜SMD 电阻器 RC0402FR-071ML, ±1%, ±100ppm/°C, 0402 封装
得捷:
RES 1M OHM 1% 1/16W 0402
立创商城:
1MΩ ±1% 62.5mW
艾睿:
The RC0402FR-071ML fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This product has a resistance value of 1M Ohm. This durable part has a power rating of 0.063 1/16 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology.
Newark:
# YAGEO PHYCOMP RC0402FR-071ML Surface Mount Thick Film Resistor, RC Series, 1 Mohm, 63 mW, - 1%, 50 V, 0402 [1005 Metric]
儒卓力:
**RC0402 1M 1% 0,063W TK100 **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 1 MΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 工业, Industrial, Portable Devices, 便携式器材, 电源管理, Power Management, 消费电子产品, Consumer Electronics
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402FR-071ML Yageo 国巨 | 当前型号 | 当前型号 |
9C04021A1004FLHF3 国巨 | 完全替代 | RC0402FR-071ML和9C04021A1004FLHF3的区别 |
RC0402JR-071ML 国巨 | 类似代替 | RC0402FR-071ML和RC0402JR-071ML的区别 |
WR04X1004FTL 台湾华科 | 功能相似 | RC0402FR-071ML和WR04X1004FTL的区别 |
