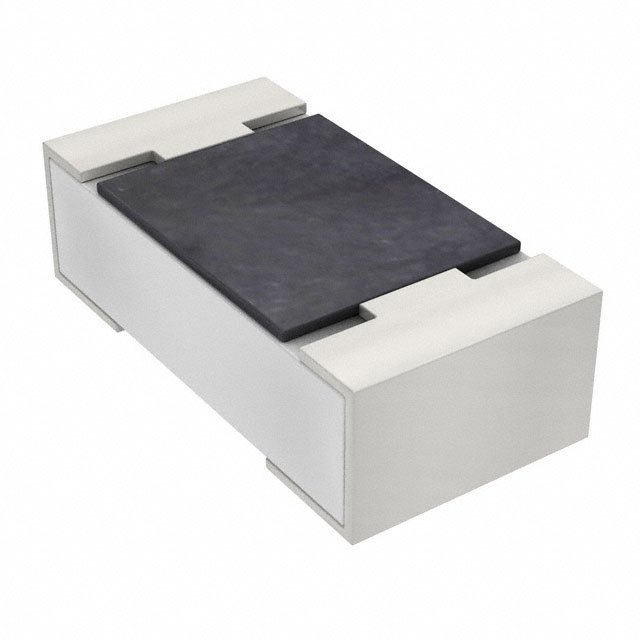

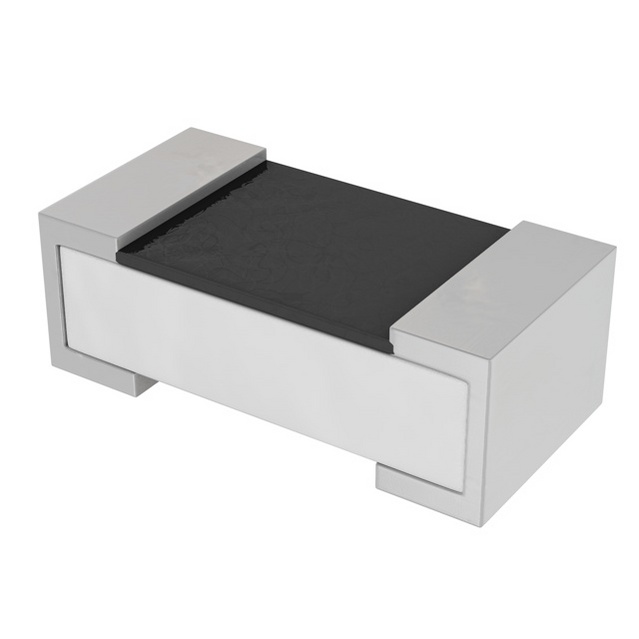

RC 系列 0402 62.5 mW 8.06 kOhms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 8.06K OHM 1% 1/16W 0402
欧时:
Resistor Thick Film 0402 8K06
立创商城:
8.06kΩ ±1% 62.5mW
贸泽:
厚膜电阻器 - SMD 8.06K OHM 1%
艾睿:
The RC0402FR-078K06L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This part has a power rating of 0.063 1/16 W. This product has a resistance value of 8.06K Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This device is made with thick film technology.
安富利:
Res Thick Film 0402 8.06K Ohm 1% 1/16W ±100ppm/°C Molded SMD Paper T/R
Chip1Stop:
Res Thick Film 0402 8.06K Ohm 1% 1/16W ±100ppm/℃ Molded SMD Paper T/R
Verical:
Res Thick Film 0402 8.06K Ohm 1% 0.063W1/16W ±100ppm/C Epoxy SMD T/R
儒卓力:
**RC0402 8,06K 1% 0,063W TK100 **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 8.06 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
安装方式 Surface Mount
封装公制 0402
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 0402
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402FR-078K06L Yageo 国巨 | 当前型号 | 当前型号 |
9C04021A8061FLHF3 国巨 | 完全替代 | RC0402FR-078K06L和9C04021A8061FLHF3的区别 |
WCR-WCR0402LF-8061-F-P-LT TT Electronics/IRC | 类似代替 | RC0402FR-078K06L和WCR-WCR0402LF-8061-F-P-LT的区别 |
CRCW04028K06FKED 威世 | 功能相似 | RC0402FR-078K06L和CRCW04028K06FKED的区别 |
