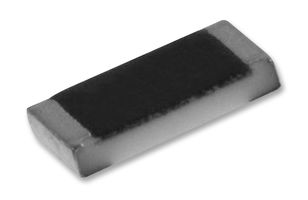

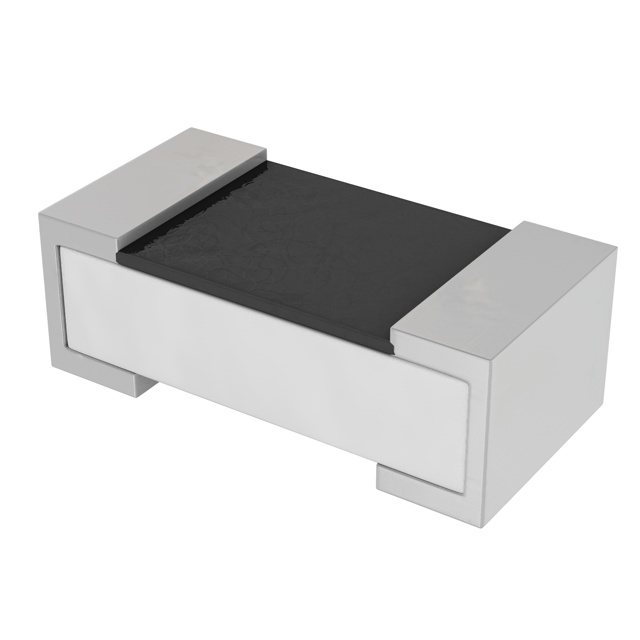

RC 系列 0402 62.5 mW 39 kOhms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 39K OHM 1% 1/16W 0402
立创商城:
39kΩ ±1% 62.5mW
欧时:
Resistor Thick film 0402 1% 39K
艾睿:
The RC0402FR-0739KL fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This durable part has a power rating of 0.063 1/16 W. This product has a resistance value of 39K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This device is made with thick film technology.
Chip1Stop:
Res Thick Film 0402 39K Ohm 1% 1/16W ±100ppm/℃ Molded SMD Paper T/R
Verical:
RC0402FR-0739KL
Newark:
# YAGEO PHYCOMP RC0402FR-0739KL Surface Mount Thick Film Resistor, RC Series, 39 kohm, 63 mW, - 1%, 50 V, 0402 [1005 Metric]
儒卓力:
**RC0402 39K 1% 0,063W TK100 **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 39 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 10000
制造应用 Industrial, 电源管理, Portable Devices, 工业, Consumer Electronics, 消费电子产品, 便携式器材, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402FR-0739KL Yageo 国巨 | 当前型号 | 当前型号 |
9C04021A3902FLHF3 国巨 | 完全替代 | RC0402FR-0739KL和9C04021A3902FLHF3的区别 |
RC0402JR-0739KL 国巨 | 类似代替 | RC0402FR-0739KL和RC0402JR-0739KL的区别 |
CRCW040239K0FKED 威世 | 功能相似 | RC0402FR-0739KL和CRCW040239K0FKED的区别 |
