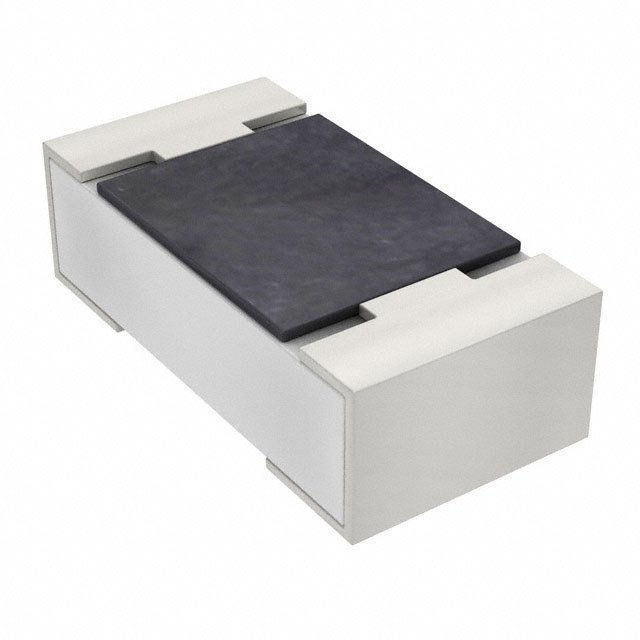

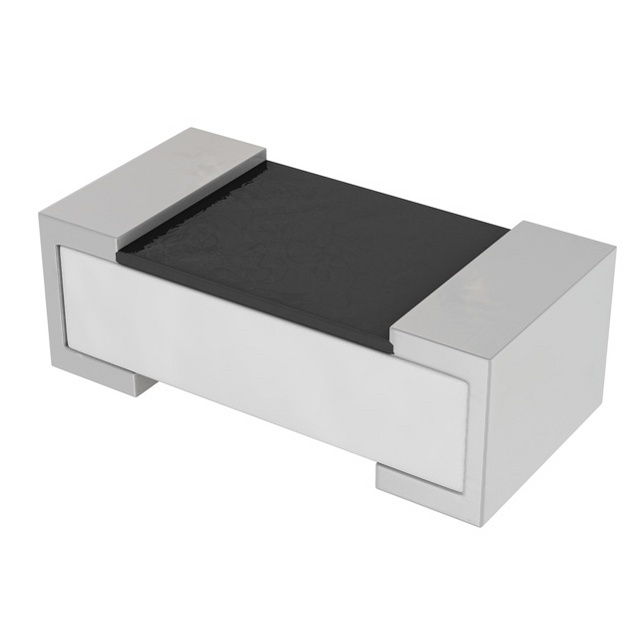

RC 系列 0402 62.5 mW 51 kOhms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 51K OHM 1% 1/16W 0402
欧时:
Resistor Thick film 0402 1% 51K
立创商城:
51kΩ ±1% 62.5mW
e络盟:
SMD片式电阻, 0402 [1005公制], 51 kohm, RC Series, 50 V, 厚膜, 63 mW
艾睿:
Use this RC0402FR-0751KL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 51K Ohm. This durable part has a power rating of 0.063 1/16 W. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep.
Verical:
Res Thick Film 0402 51K Ohm 1% 0.063W1/16W ±100ppm/C Epoxy SMD T/R
Newark:
# YAGEO PHYCOMP RC0402FR-0751KL Surface Mount Chip Resistor, Thick Film, RC Series, 51 kohm, 63 mW, 1%, 50 V, 0402 [1005 Metric]
儒卓力:
**RC0402 51,0K 1% 0,063W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 51 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 10000
制造应用 工业, Industrial, 电源管理, 便携式器材, Consumer Electronics, Power Management, 消费电子产品, Portable Devices
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402FR-0751KL Yageo 国巨 | 当前型号 | 当前型号 |
9C04021A5102FLHF3 国巨 | 完全替代 | RC0402FR-0751KL和9C04021A5102FLHF3的区别 |
RC0402JR-0751KL 国巨 | 类似代替 | RC0402FR-0751KL和RC0402JR-0751KL的区别 |
CRCW040251K0FKED 威世 | 功能相似 | RC0402FR-0751KL和CRCW040251K0FKED的区别 |
