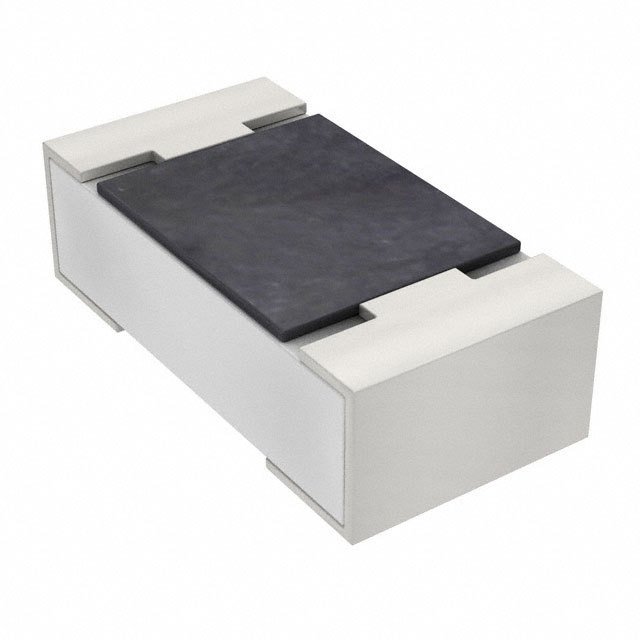

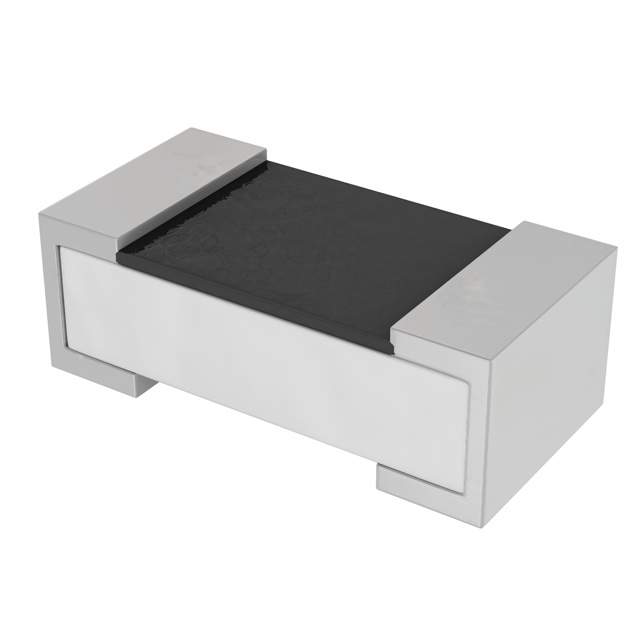

YAGEO RC0402FR-0756R2L 厚膜电阻, 56.2Ω, 62.5mW 1%
SMD器/芯片电阻器
得捷:
RES 56.2 OHM 1% 1/16W 0402
立创商城:
56.2Ω ±1% 62.5mW
艾睿:
This is a RC0402FR-0756R2L fixed single surface-mount resistor from Yageo. This dependable part has a power rating of 0.063 1/16 W. This product has a resistance value of 56.2 Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. It has a tolerance of 1%. This device utilizes thick film technology. This part has an operating temperature of -55 to 155 °C.
Chip1Stop:
Res Thick Film 1.0 x 0.5 mm 56.2 Ohm 1% 0.063W1/16W 100ppm/ C Molded SMD Paper T/R
Newark:
# YAGEO RC0402FR-0756R2L SMD Chip Resistor, Thick Film, 56.2 ohm, 50 V, 0402 [1005 Metric], 62.5 mW, ± 1%, RC Series
儒卓力:
**RC0402 56,2R 1% 0,063W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 56.2 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
封装公制 1005
封装 0402

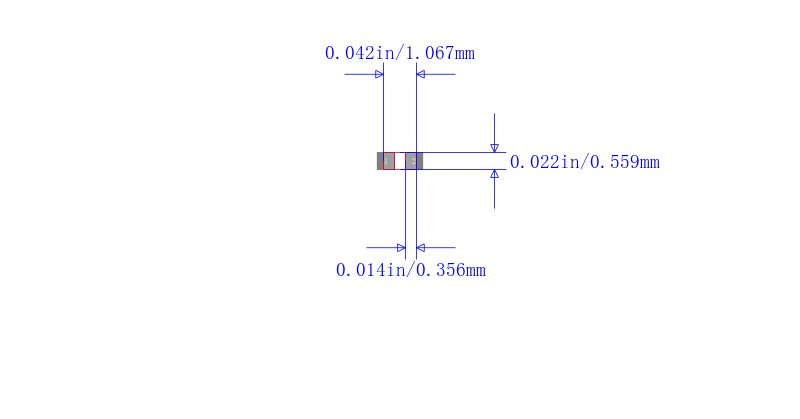

长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 10000
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402FR-0756R2L Yageo 国巨 | 当前型号 | 当前型号 |
CRCW040256R2FKED 威世 | 功能相似 | RC0402FR-0756R2L和CRCW040256R2FKED的区别 |
ERJ2RKF56R2X 松下 | 功能相似 | RC0402FR-0756R2L和ERJ2RKF56R2X的区别 |
