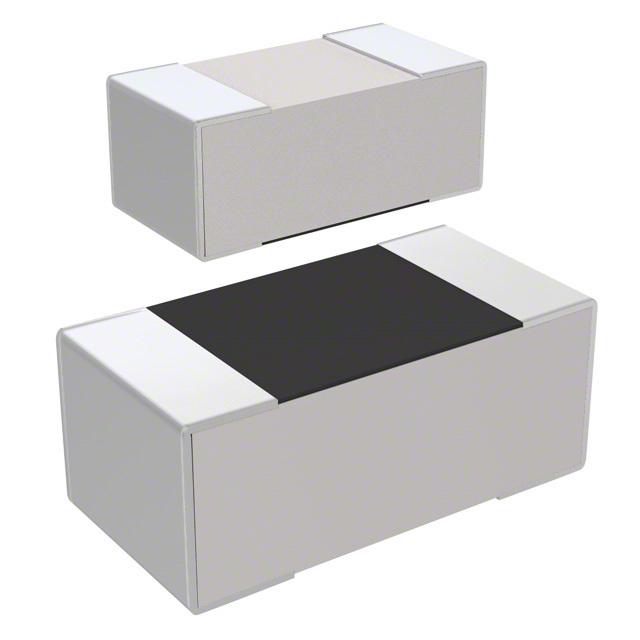

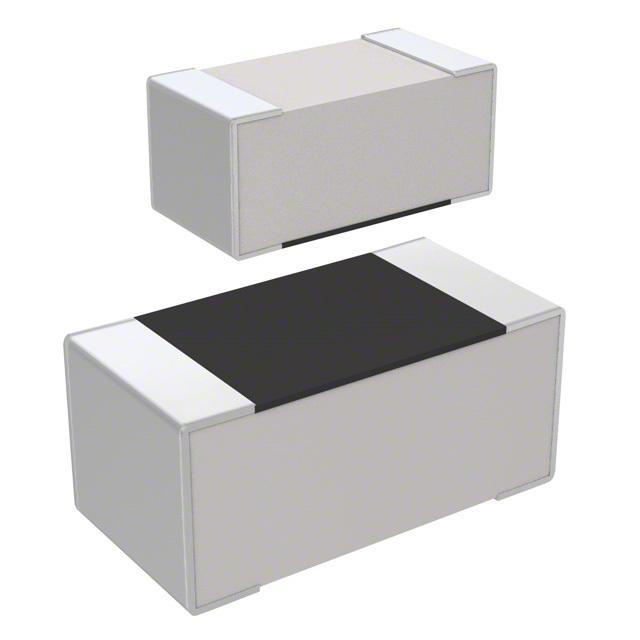

0402 4.99kΩ ±1%
4.99 kOhms ±1% 0.063W,1/16W 芯片 0402(1005 公制) 防潮 厚膜
得捷:
RES SMD 4.99K OHM 1% 1/16W 0402
艾睿:
Use this RC1005F4991CS fixed single surface-mount resistor from Samsung Electro-Mechanics to obtain a visually clean layout. This dependable part has a power rating of 0.063 1/16 W. This product has a resistance value of 4.99K Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep.
安富利:
Res Thick Film 0402 4.99K Ohm 1% 1/16W ±100ppm/°C Molded SMD SMD T/R
Verical:
Res Thick Film 0402 4.99K Ohm 1% 0.063W1/16W ±100ppm/C Pad SMD T/R
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 4.99 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC1005F4991CS Samsung 三星 | 当前型号 | 当前型号 |
CR0402-FX-4991GLF 伯恩斯 | 功能相似 | RC1005F4991CS和CR0402-FX-4991GLF的区别 |
