SMD电阻器/芯片电阻器
SMD器/芯片电阻器
立创商城:
59kΩ ±1% 62.5mW
得捷:
RES 59K OHM 1% 1/16W 0402
贸泽:
Thick Film Resistors - SMD 59K OHM 1%
艾睿:

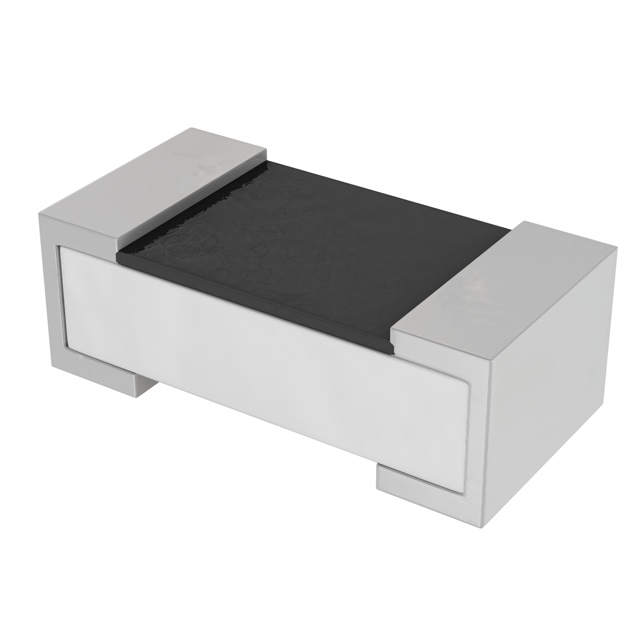

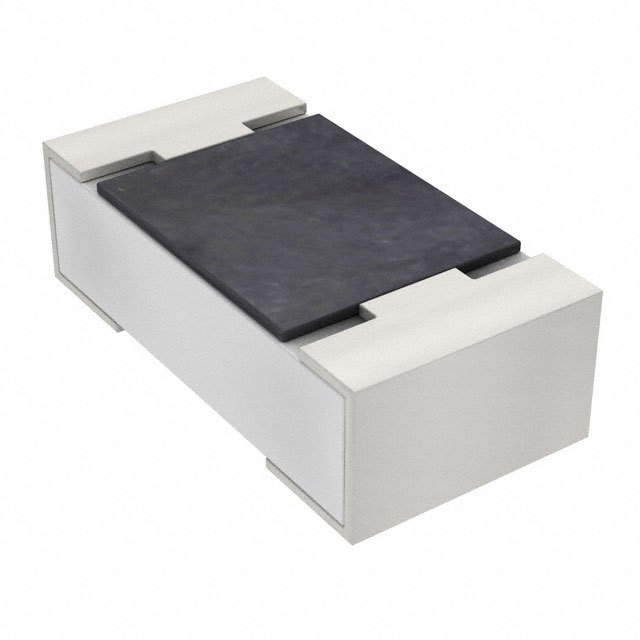

This is a RC0402FR-0759KL fixed single surface-mount resistor from Yageo. This durable part has a power rating of 0.063 1/16 W. This product has a resistance value of 59K Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device utilizes thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep.
安富利:
Res Thick Film 0402 59K Ohm 1% 1/16W ±100ppm/°C Molded SMD Paper T/R
富昌:
RC 系列 0402 62.5 mW 59 kOhms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
Chip1Stop:
Res Thick Film 0402 59K Ohm 1% 0.063W1/16W ±100ppm/℃ Molded SMD Paper T/R
TME:
Resistor: thick film; SMD; 0402; 59kΩ; 63mW; ±1%; -55÷125°C
Verical:
Res Thick Film 0402 59K Ohm 1% 0.063W1/16W ±100ppm/C Epoxy SMD T/R
儒卓力:
**RC0402 59,0K 1% 0,063W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 59 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
封装公制 0402
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 0402
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
RoHS标准 RoHS Compliant
含铅标准 PB free
ECCN代码 EAR99
