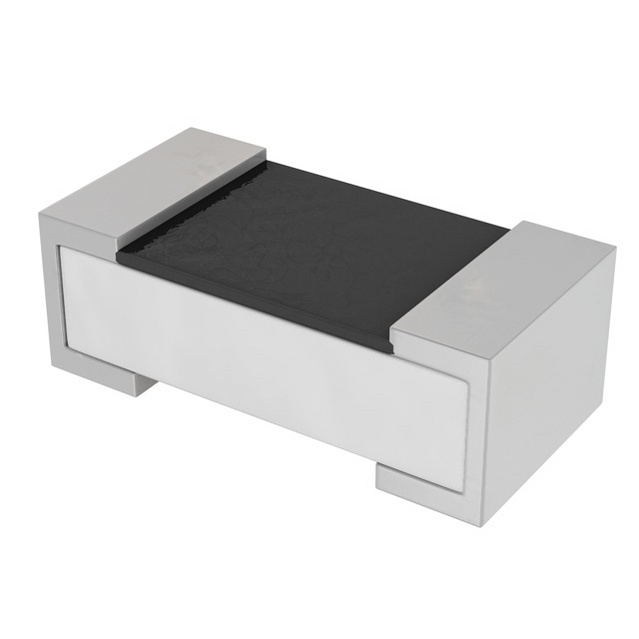

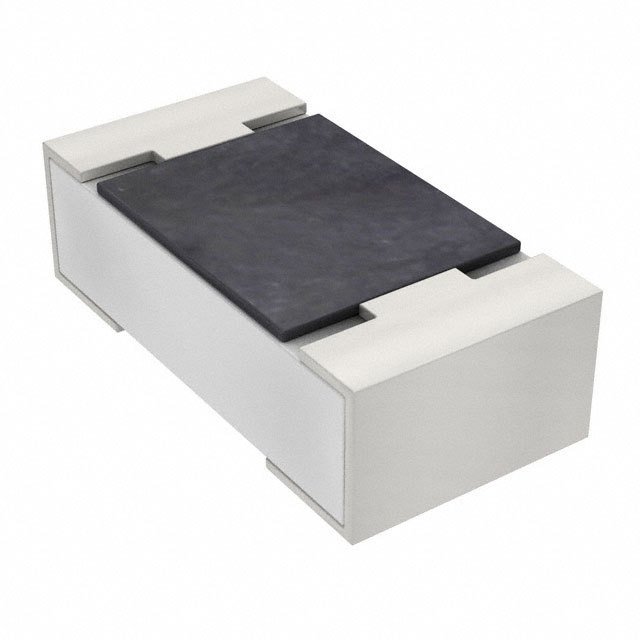

RC0402FR-0790K9L

RC0402FR-0790K9L图片1
RC0402FR-0790K9L图片2
RC0402FR-0790K9L图片3
RC0402FR-0790K9L图片4
RC0402FR-0790K9L图片5
RC0402FR-0790K9L图片6
RC0402FR-0790K9L图片7
RC0402FR-0790K9L图片8
RC0402FR-0790K9L图片9
RC0402FR-0790K9L图片10
RC0402FR-0790K9L概述

SMD电阻器/芯片电阻器

SMD器/芯片电阻器


得捷:
RES 90.9K OHM 1% 1/16W 0402


立创商城:
90.9kΩ ±1% 62.5mW


艾睿:
Use this RC0402FR-0790K9L fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This durable part has a power rating of 0.063 1/16 W. This product has a resistance value of 90.9K Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. It has a tolerance of 1%.


安富利:
Res General Purpose Thick Film 0402 90.9K Ohm 1% 1/16W ±100ppm/°C Molded SMD Paper T/R


Chip1Stop:
Res Thick Film 1.0 x 0.5 mm 90.9K Ohm 1% 0.063W1/16W 100ppm/ C Molded SMD Paper T/R


TME:
Resistor: thick film; SMD; 0402; 90.9kΩ; 63mW; ±1%; -55÷125°C


Verical:
Res Thick Film 0402 90.9K Ohm 1% 0.063W1/16W ±100ppm/C Epoxy SMD T/R


儒卓力:
**RC0402 90,9K 1% 0,063W **


RC0402FR-0790K9L中文资料参数规格
技术参数

额定电压DC 50.0 V

容差 ±1 %

额定功率 0.063 W

产品系列 RC

电阻 90.9 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

精度 ±1 %

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

外形尺寸

长度 1 mm

宽度 0.5 mm

高度 0.35 mm

封装公制 1005

封装 0402

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 10000

符合标准

RoHS标准

含铅标准 PB free

海关信息

ECCN代码 EAR99

数据手册

RC0402FR-0790K9L引脚图与封装图

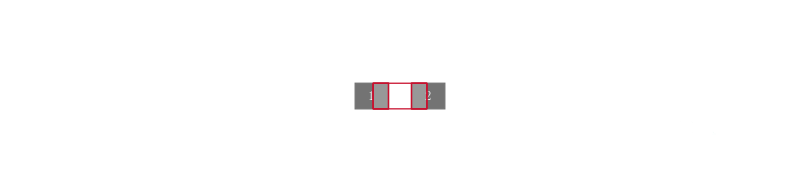

RC0402FR-0790K9L引脚图

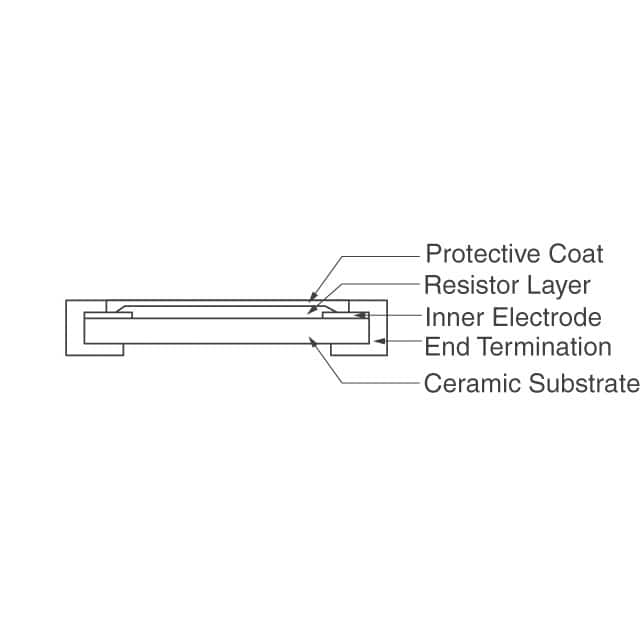

RC0402FR-0790K9L封装图

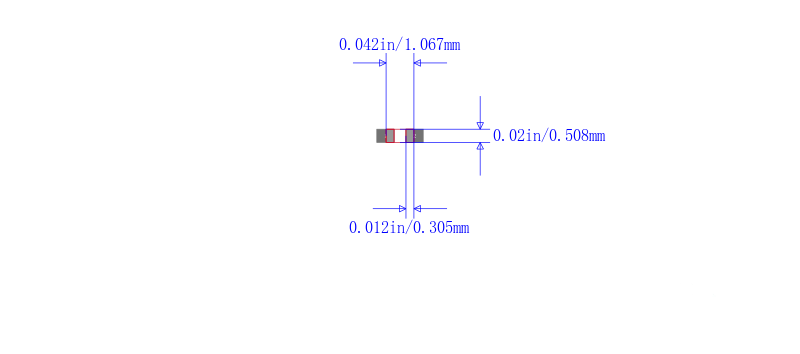

RC0402FR-0790K9L封装焊盘图
在线购买RC0402FR-0790K9L
型号: RC0402FR-0790K9L
制造商: Yageo 国巨
描述:SMD电阻器/芯片电阻器
替代型号RC0402FR-0790K9L
型号/品牌 代替类型 替代型号对比

RC0402FR-0790K9L

Yageo 国巨

当前型号

当前型号

9C04021A9092FLHF3

国巨

完全替代

RC0402FR-0790K9L和9C04021A9092FLHF3的区别

CRCW040290K9FKED

威世

功能相似

RC0402FR-0790K9L和CRCW040290K9FKED的区别

CRCW040290K9FKTD

威世

功能相似

RC0402FR-0790K9L和CRCW040290K9FKTD的区别
