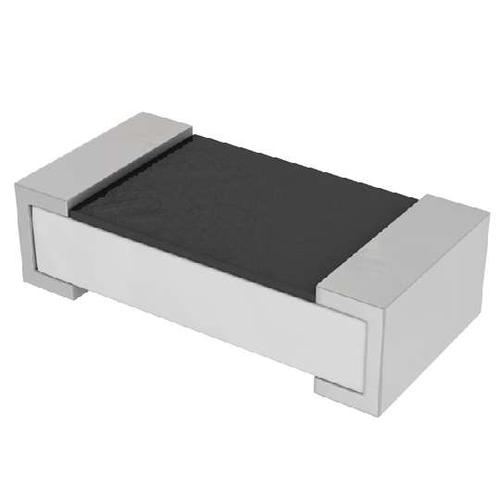

RC 系列 0603 0.1 W 22.1 kOhms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 22.1K OHM 1% 1/10W 0603
欧时:
Resistor Thick film 0603 1% 22K1
立创商城:
22.1kΩ ±1% 100mW
艾睿:
The RC0603FR-0722K1L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This part has a power rating of 0.1 1/10 W. This product has a resistance value of 22.1K Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. It has a tolerance of 1%. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C.
Chip1Stop:
Res Thick Film 1.6 x 0.8 mm 22.1K Ohm 1% 0.1W1/10W 100ppm/ C Molded SMD Paper T/R
Verical:
Res Thick Film 0603 22.1K Ohm 1% 0.1W1/10W ±100ppm/C Epoxy Pad SMD T/R
Newark:
# YAGEO RC0603FR-0722K1L SMD Chip Resistor, Thick Film, 22.1 kohm, 50 V, 0603 [1608 Metric], 100 mW, ± 1%, RC Series
儒卓力:
**RC0603 22,1K 1% 0,1W **
Win Source:
RES SMD 22.1K OHM 1% 1/10W 0603
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.1 W
产品系列 RC
电阻 22.1 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active

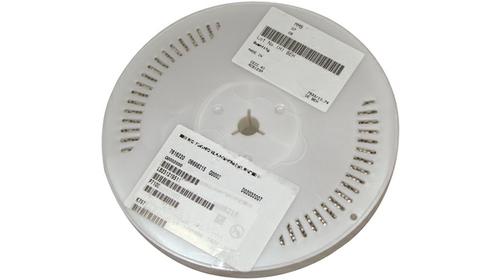

包装方式 Tape & Reel TR
最小包装 5000
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0603FR-0722K1L Yageo 国巨 | 当前型号 | 当前型号 |
9C06031A2212FKHFT 国巨 | 完全替代 | RC0603FR-0722K1L和9C06031A2212FKHFT的区别 |
CR0603-FX-2212ELF 伯恩斯 | 功能相似 | RC0603FR-0722K1L和CR0603-FX-2212ELF的区别 |
WR06X2212FTL 台湾华科 | 功能相似 | RC0603FR-0722K1L和WR06X2212FTL的区别 |
