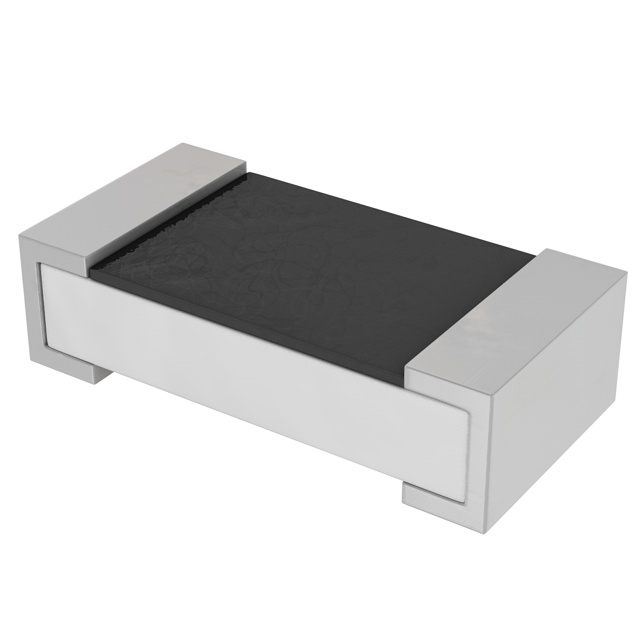

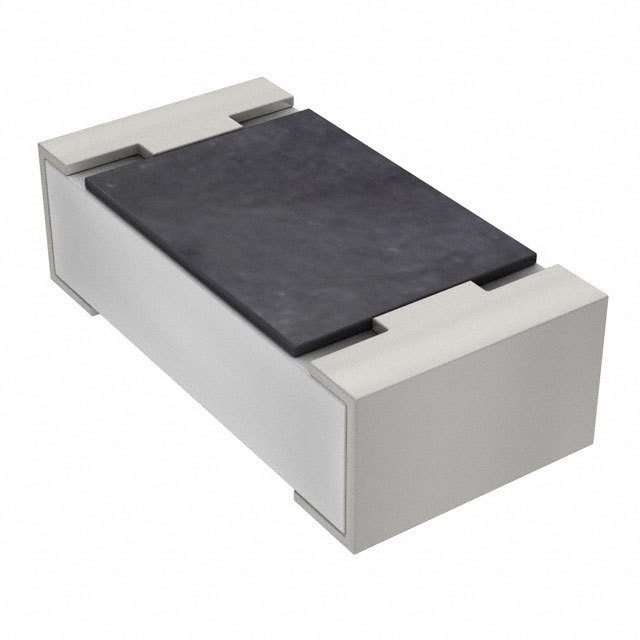

RC 系列 0603 0.1 W 16.2 kOhms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 16.2K OHM 1% 1/10W 0603
欧时:
Resistor Thick Film 0603 16K2
立创商城:
16.2kΩ ±1% 100mW
贸泽:
Thick Film Resistors - SMD Thick Film Resistors
艾睿:
The RC0603FR-0716K2L fixed single surface-mount resistor from Yageo makes it easy to add resistors to your circuit board. This durable part has a power rating of 0.1 1/10 W. This product has a resistance value of 16.2K Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with thick film technology. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%.
Chip1Stop:
Res Thick Film 1.6 x 0.8 mm 16.2K Ohm 1% 0.1W1/10W 100ppm/ C Molded SMD Paper T/R
Verical:
Res Thick Film 0603 16.2K Ohm 1% 1/10W �100ppm/C Molded SMD SMD Paper T/R
儒卓力:
**RC0603 16,2K 1% 0,1W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.1 W
产品系列 RC
电阻 16.2 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 75 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 5000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0603FR-0716K2L Yageo 国巨 | 当前型号 | 当前型号 |
9C06031A1622FKHFT 国巨 | 完全替代 | RC0603FR-0716K2L和9C06031A1622FKHFT的区别 |
CRCW060316K2FKEA 威世 | 功能相似 | RC0603FR-0716K2L和CRCW060316K2FKEA的区别 |
NRC06F1622TRF NIC | 功能相似 | RC0603FR-0716K2L和NRC06F1622TRF的区别 |
