AMPHENOL COMMERCIAL PRODUCTS RJHSE-5084 模块连接器, RJ45, 插座, 8 触点, 8 路, 1 端口

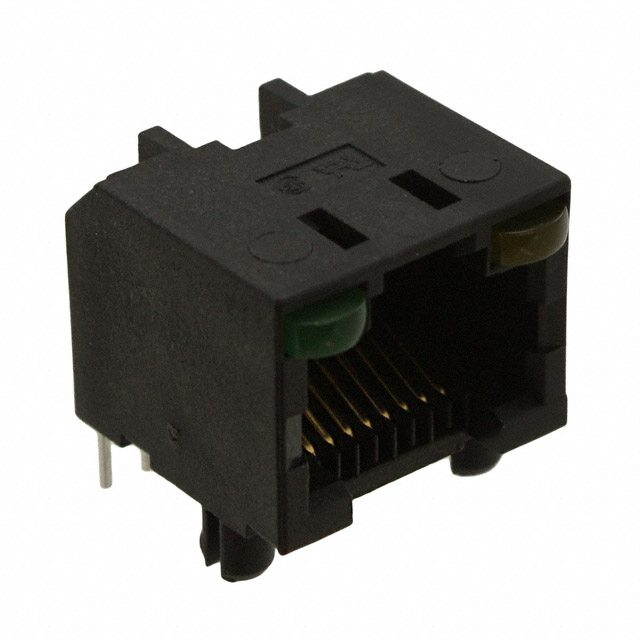

The is a 8-position single-port RJ45 high speed Modular Jack, RJHSE series, gold-plated phosphor bronze contacts and UL94V-0 flammability-rated black high temperature thermoplastic housing, right angle mount, green left and yellow right LED. The RJHSE inverted modular jack with superior EMI performance supports Ethernet protocols. Shielding available for increased EMI performance and LEDs for link activity and network speed verification.
- .
- Tin plating on LED tails
- .
- 20mR Maximum contact resistance
- .
- 500MR Minimum at 500VDC for 2 minutes maximum insulation resistance
- .
- 1.5A Current rating
- .
- 125VAC Voltage rating
- .
- 20mA Typical LED forward DC current
- .
- 5V Minimum LED reverse voltage
触点数 8
极性 Male
触点电镀 Gold
额定电压DC 125 V
额定电流 1.5 A
排数 1
易燃性等级 UL 94 V-0
针脚数 8
拔插次数 750
屏蔽 No
额定电流Max 1.5A/触头
额定电压 125 V
接触电阻Max 20 mΩ
安装方式 Through Hole

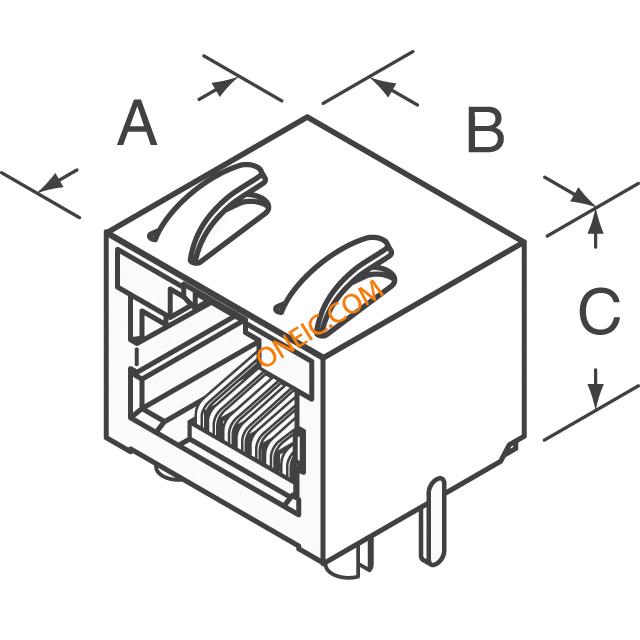

长度 15.75 mm
宽度 14.99 mm
高度 13.21 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Computers & Computer Peripherals, Industrial, 无线, Security, Audio, 安全, 通信与网络, Wireless, 消费电子产品, Consumer Electronics, 音频, 多媒体, 国防, 军用与航空, Aerospace, Defence, Military, Multimedia, Communications & Networking, 工业, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RJHSE-5084 Amphenol 安费诺 | 当前型号 | 当前型号 |
RJHSE-5384 安费诺 | 类似代替 | RJHSE-5084和RJHSE-5384的区别 |
5556416-1 泰科 | 功能相似 | RJHSE-5084和5556416-1的区别 |
5557786-1 泰科 | 功能相似 | RJHSE-5084和5557786-1的区别 |
