AMPHENOL COMMERCIAL PRODUCTS RJHSE-5381 模块连接器, Cat5, RJ45, RJHSE系列, 插座, 8 触点, 8 路, 1 端口

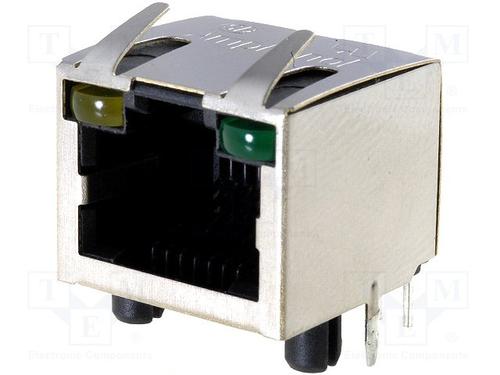

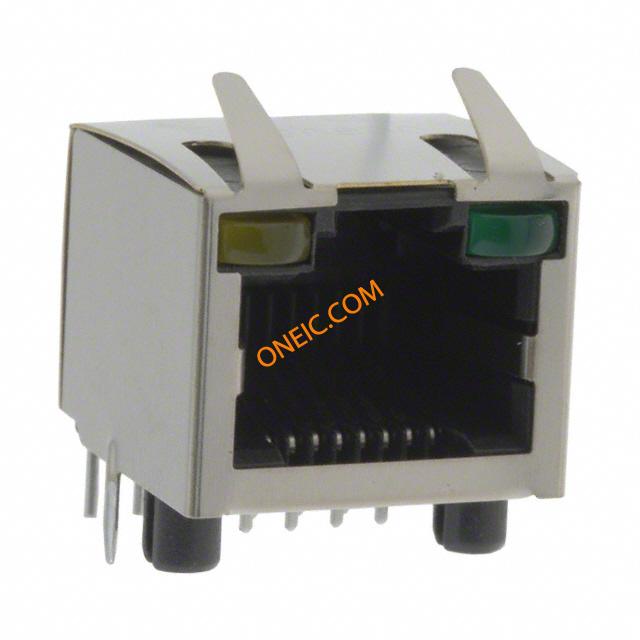

The is a 8-position single-port RJ45 high speed Modular Jack, RJHSE series, gold-plated phosphor bronze contacts and UL94V-0 flammability-rated black high temperature thermoplastic housing, right angle mount, yellow left and green right LED. The RJHSE inverted modular jack with superior EMI performance supports Ethernet protocols. Shielding available for increased EMI performance and LEDs for link activity and network speed verification.
- .
- Stainless steel with tin dipped tails shield
- .
- Tin plating on LED tails
- .
- 20mR Maximum contact resistance
- .
- 500MR Minimum at 500VDC for 2 minutes maximum insulation resistance
- .
- 1.5A Current rating
- .
- 125VAC Voltage rating
- .
- 20mA Typical LED forward DC current
- .
- 5V Minimum LED reverse voltage
触点数 8
极性 Male
触点电镀 Gold, Gold over Nickel
额定电流 1.5 A
绝缘电阻 500 MΩ
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 8
拔插次数 750
屏蔽 Yes
额定电流Max 1.5A/触头
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 125 VAC
额定电压 125 V
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 throughHole
长度 16.51 mm
高度 13.46 mm
封装 throughHole
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
制造应用 Security, 消费电子产品, 音频, Communications & Networking, Industrial, Aerospace, Defence, Military, 多媒体, Consumer Electronics, 安全, Multimedia, Wireless, 工业, 无线, 通信与网络, Audio, 国防, 军用与航空, 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RJHSE-5381 Amphenol 安费诺 | 当前型号 | 当前型号 |
2-406549-1 泰科 | 类似代替 | RJHSE-5381和2-406549-1的区别 |
2-406549-5 泰科 | 类似代替 | RJHSE-5381和2-406549-5的区别 |
