AMPHENOL COMMERCIAL PRODUCTS RJHSE-5384 模制插座, CAT5, RJ45, 8P8C, 1端口

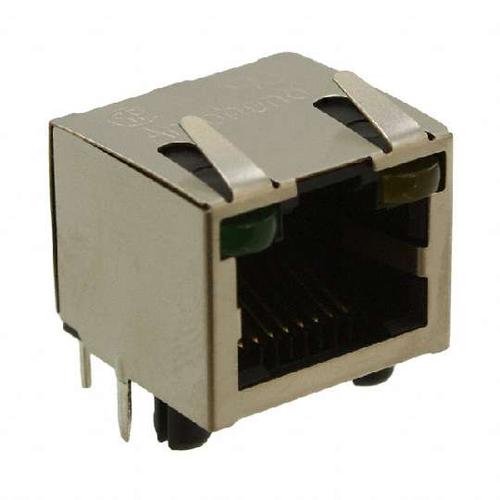

The is a CAT-5 8P8C/RJ45 EMI Quiet Modular Jack with built-in LEDs, high temperature engineering thermoplastic insulator and right angle, 8-position, 50µinch gold-plated phosphor bronze hard temper contacts. The modular jack features stainless steel with tin dipped tails shield, shield with top tabs. This product is ideal for LAN applications such as adapter cards and routers.
- .
- Tin-plated LED tails
- .
- 20mR Maximum contact resistance
- .
- 500MR at 500VDC for 2 minutes Maximum insulation resistance
- .
- 1.5A Current rating
- .
- 125VAC Voltage rating
- .
- 1000VAC/minute at 60Hz DMV
- .
- Green LED-2 left and yellow LED-1 right
- .
- -55 to + 85°C Operating temperature
触点数 8
极性 Male
触点电镀 Gold, Gold over Nickel
额定电压DC 125 V
额定电流 1.5 A
绝缘电阻 500 MΩ
排数 1
方向 Right Angle
针脚数 8
拔插次数 750
屏蔽 Yes
额定电流Max 1.5A/触头
额定电压 125 V
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 throughHole
长度 16.51 mm
宽度 15.75 mm
高度 13.46 mm
封装 throughHole
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Communications & Networking, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RJHSE-5384 Amphenol 安费诺 | 当前型号 | 当前型号 |
RJHSE-5381-02 安费诺 | 完全替代 | RJHSE-5384和RJHSE-5381-02的区别 |
RJHSE-5384-04 安费诺 | 完全替代 | RJHSE-5384和RJHSE-5384-04的区别 |
RJHSE-5381-04 安费诺 | 完全替代 | RJHSE-5384和RJHSE-5381-04的区别 |
