AMPHENOL COMMERCIAL PRODUCTS RJHSE-3081 模块连接器, Cat5, RJ45, RJHSE系列, 插座, 8 触点, 8 路, 1 端口

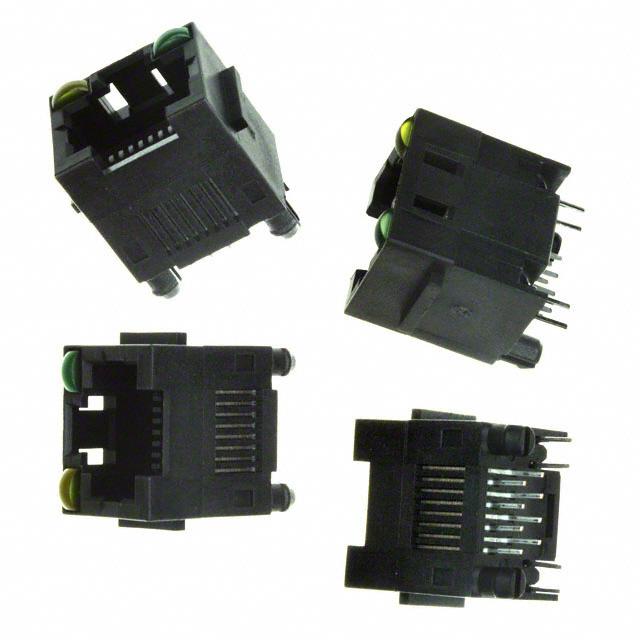

The is a 8-position single-port RJ45 high speed Modular Jack, RJHSE series, gold-plated phosphor bronze contacts and UL94V-0 flammability-rated black high temperature thermoplastic housing, vertical mount, yellow left and green right LED. The RJHSE inverted modular jack with superior EMI performance supports Ethernet protocols. Shielding available for increased EMI performance and LEDs for link activity and network speed verification.
- .
- Tin plating on LED tails
- .
- 20mR Maximum contact resistance
- .
- 500MR Minimum at 500VDC for 2 minutes maximum insulation resistance
- .
- 1.5A Current rating
- .
- 125VAC Voltage rating
- .
- 20mA Typical LED forward DC current
- .
- 5V Minimum LED reverse voltage
触点数 8
极性 Male
触点电镀 Gold
绝缘电阻 500 MΩ
排数 1
针脚数 8
额定电流Max 1.5 A
额定电压Max 125 VAC
接触电阻Max 20 mΩ
安装方式 Through Hole
长度 15.75 mm
宽度 13.59 mm
高度 15.88 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 计算机和计算机周边, 多媒体, 音频, Multimedia, 通信与网络, Communications & Networking, Security, Audio, Aerospace, Defence, Military, 无线, Computers & Computer Peripherals, Consumer Electronics, Industrial, 国防, 军用与航空, Wireless, 安全, 消费电子产品, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
ECCN代码 EAR99
