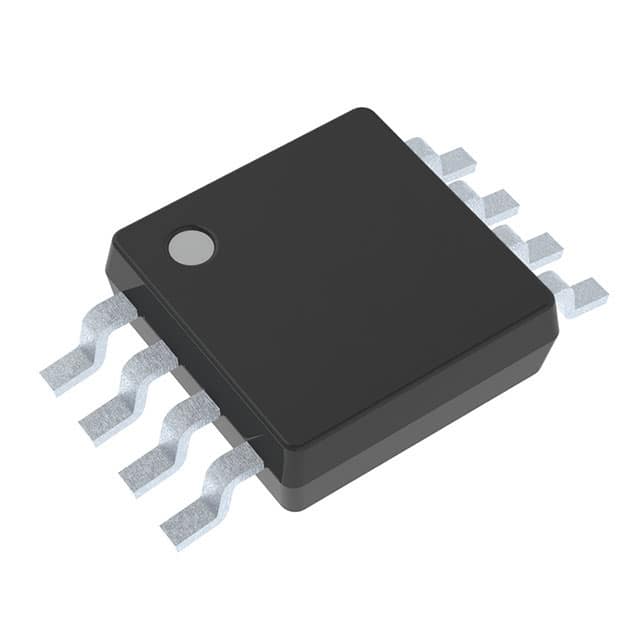

REF5040AIDGKR

低噪声，极低漂移，高精度电压基准 Low-Noise, Very Low Drift, Precision VOLTAGE REFERENCE

DESCRIPON

The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing, and are very robust with regard to line and load changes. Excellent temperature drift 3ppm/°C and high accuracy 0.05% are achieved using proprietary design techniques. These features, combined with very-low noise make the REF50xx family ideal for use in high-precision data acquisition systems.

FEATURES

• LOW TEMPERATURE DRIFT:

  – High-Grade: 3ppm/°C max

  – Standard-Grade: 8ppm/°C max

• HIGH ACCURACY:

  – High-Grade: 0.05% max

  – Standard-Grade: 0.1% max

• LOW NOISE: 3µVPP/V

• HIGH OUTPUT CURRENT: ±10mA

• TEMPERATURE RANGE: –40°C to +125°C
