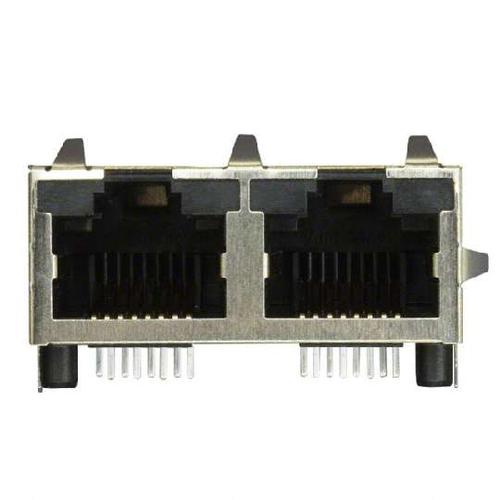

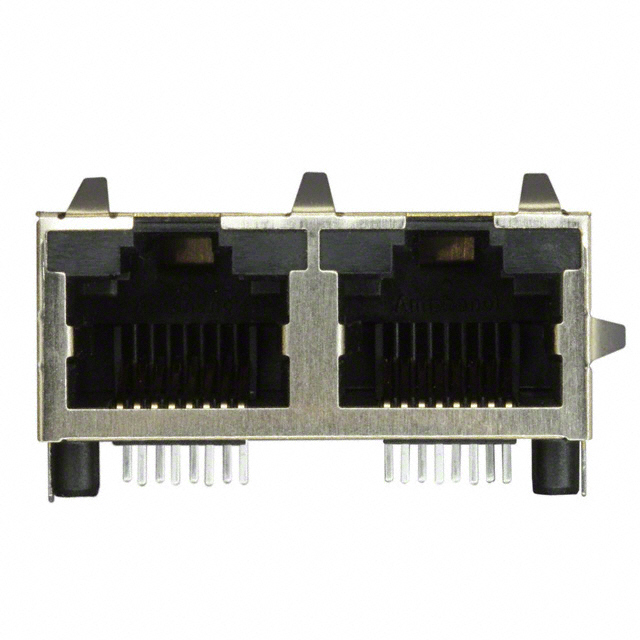

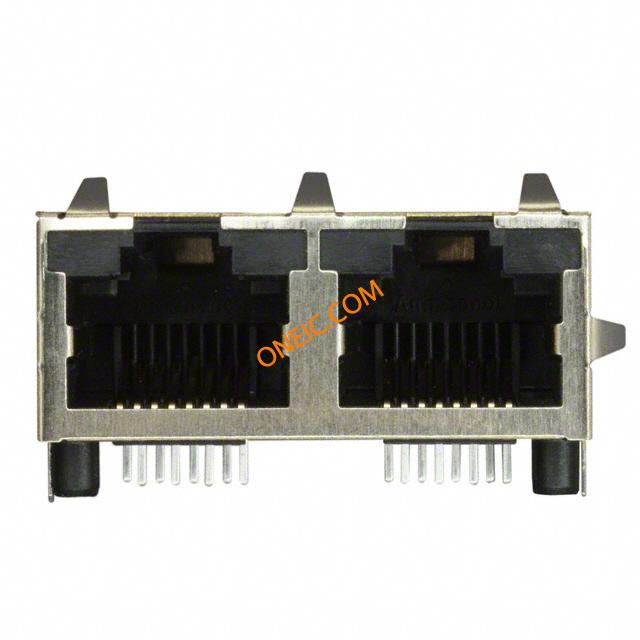

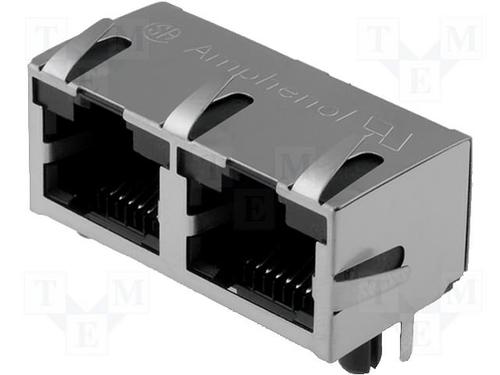

AMPHENOL COMMERCIAL PRODUCTS RJHSE-5380-02 模块连接器, Cat5, RJ45, RJHSE系列, 插座, 8 触点, 8 路, 2 端口
The RJHSE series EMI Quiet standard Modular Jack with built-in LEDs. It is ideal for LAN applications such as adapter cards and routers. It is available in shielded and non-shielded, right angle, vertical mount versions and with a variety of LED colours and ports.
- .
- 1.5A Current rating per pin
- .
- 125VAC Voltage rating
- .
- 20mR Contact resistance maximum
- .
- 750 Mating and unmating cycles durability
- .
- -55 to 85°C Temperature range
触点数 8
极性 Male
触点电镀 Gold
额定电流 1.5 A
排数 1
方向 Right Angle
针脚数 8
拔插次数 750
额定电流Max 1.5 A
额定电压Max 125 VAC
额定电压 125 V
接触电阻Max 20 mΩ
安装方式 Through Hole

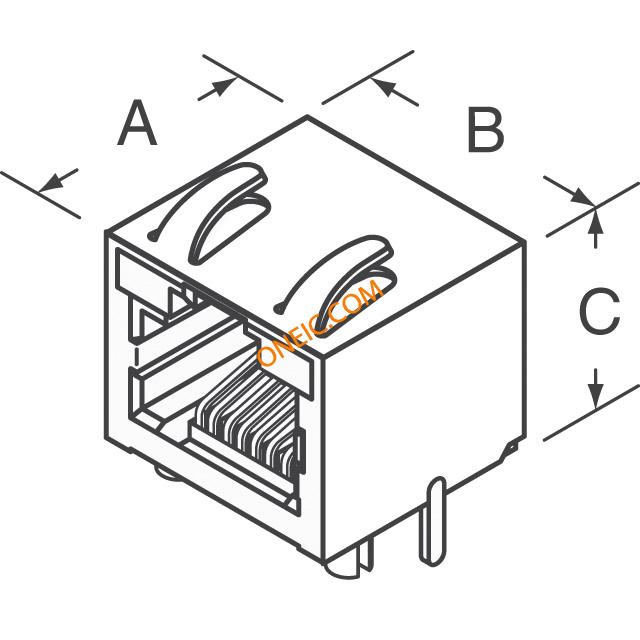

长度 32.26 mm
宽度 16.38 mm
高度 13.46 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Computers & Computer Peripherals, Industrial, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RJHSE-5380-02 Amphenol 安费诺 | 当前型号 | 当前型号 |
5555164-1 泰科 | 类似代替 | RJHSE-5380-02和5555164-1的区别 |
5557786-1 泰科 | 类似代替 | RJHSE-5380-02和5557786-1的区别 |
5556416-1 泰科 | 功能相似 | RJHSE-5380-02和5556416-1的区别 |
