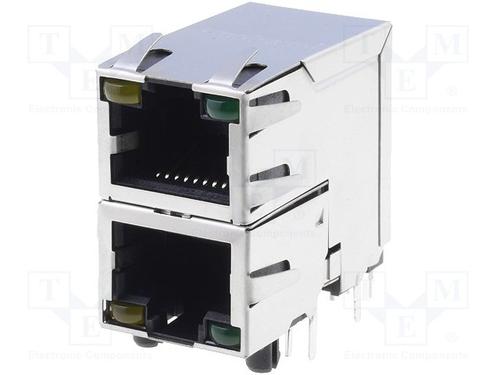

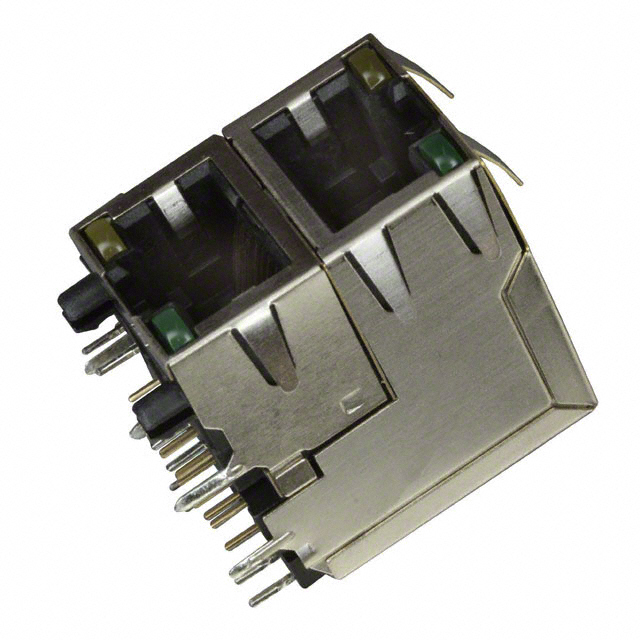

Conn RJ-45F 16POS 2.54mm Solder RA Thru-Hole 24 Terminal 2Port Cat 5
You will never drop a call again with this rj-45 RJSAE538102 telephone and telecom connector from . This F connector"s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has 2 ports. Its pitch is 2.54 mm. It has a right angle body orientation. It has a female type gender. RJSAE538102 is housed in thermoplastic. It uses the solder termination method. This product is 16.51 mm long, 25.4 mm tall and 28.15 mm deep.
触点数 8
极性 Male
触点电镀 Gold
绝缘电阻 500 MΩ
排数 2
方向 Right Angle
针脚数 8
拔插次数 750
额定电流Max 1.5A/触头
接触电阻Max 20 mΩ
安装方式 Through Hole
封装 throughHole
长度 16.51 mm
宽度 28.15 mm
高度 25.4 mm
封装 throughHole
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RJSAE-5381-02 Amphenol 安费诺 | 当前型号 | 当前型号 |
RJHSE-5384 安费诺 | 类似代替 | RJSAE-5381-02和RJHSE-5384的区别 |
RJSAE538102 安费诺 | 类似代替 | RJSAE-5381-02和RJSAE538102的区别 |
5557786-1 泰科 | 类似代替 | RJSAE-5381-02和5557786-1的区别 |
