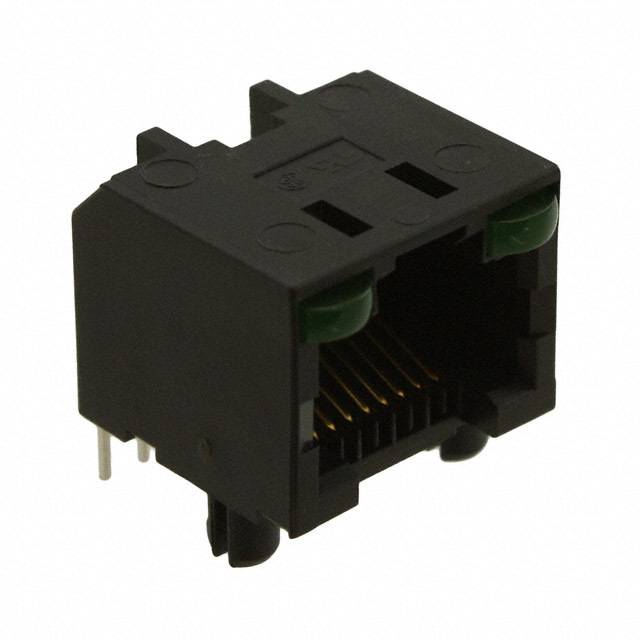

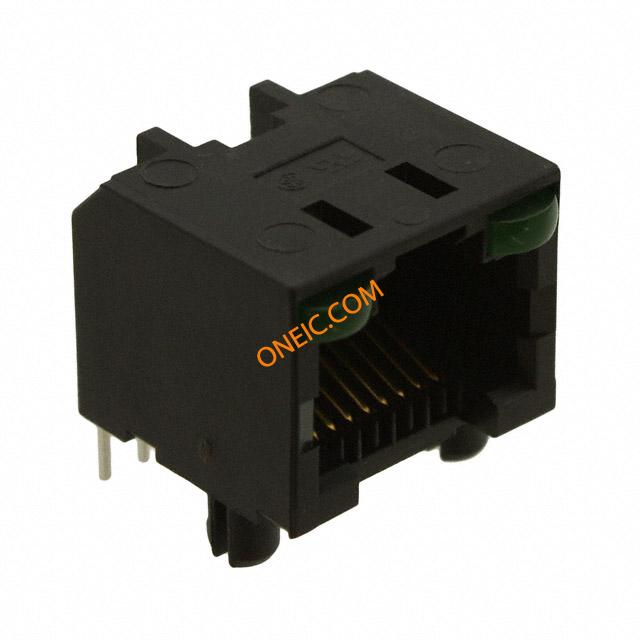

AMPHENOL COMMERCIAL PRODUCTS RJHSE-5085 模块连接器, Cat5, RJ45, RJHSE系列, 插座, 8 触点, 8 路, 1 端口
The is a CAT-5 8P8C/RJ45 EMI Quiet Modular Jack with built-in LEDs, high temperature engineering thermoplastic insulator and right angle, 8-position, 50µinch gold-plated phosphor bronze hard temper contacts. This product is ideal for LAN applications such as adapter cards and routers.
- .
- Tin-plated LED tails
- .
- 20mR Maximum contact resistance
- .
- 500MR at 500VDC for 2 minutes Maximum insulation resistance
- .
- 1.5A Current rating
- .
- 125VAC Voltage rating
- .
- 1000VAC/minute at 60Hz DMV
- .
- Green LED-2 left and LED-1 right
- .
- -55 to + 85°C Operating temperature
触点数 8
极性 Male
触点电镀 Gold, Gold over Nickel
额定电压DC 125 V
额定电流 1.5 A
绝缘电阻 500 MΩ
排数 1
易燃性等级 UL 94 V-0
针脚数 8
拔插次数 750
屏蔽 No
额定电流Max 1.5 A
额定电压Max 125 VAC
额定电压 125 V
接触电阻Max 20 mΩ
安装方式 Through Hole

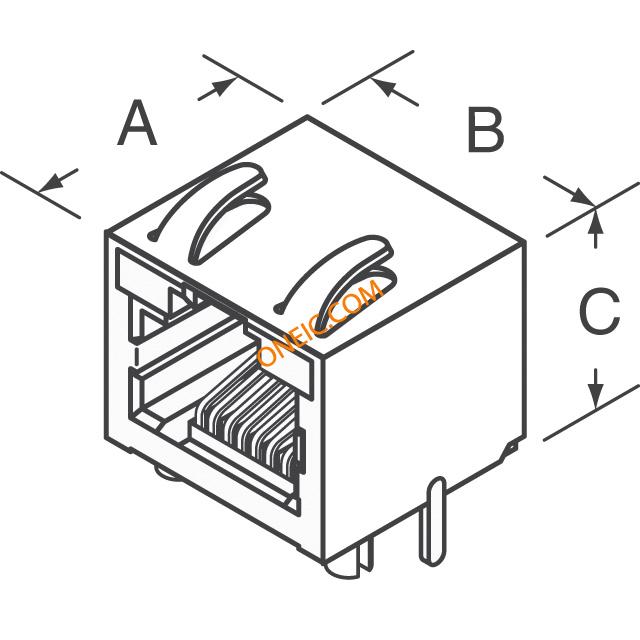

长度 15.75 mm
宽度 14.99 mm
高度 13.21 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 通信与网络, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
RJHSE-5085 Amphenol 安费诺 | 当前型号 | 当前型号 |
2-406549-4 泰科 | 类似代替 | RJHSE-5085和2-406549-4的区别 |
2-406549-5 泰科 | 类似代替 | RJHSE-5085和2-406549-5的区别 |
