RJHSE-3380

AMPHENOL COMMERCIAL PRODUCTS  RJHSE-3380  模块连接器, Cat5, RJ45, RJHSE系列, 插座, 8 触点, 8 路, 1 端口

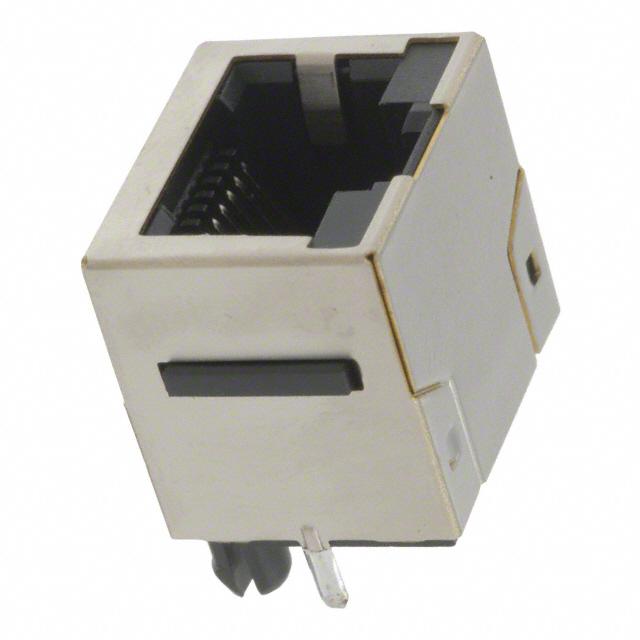

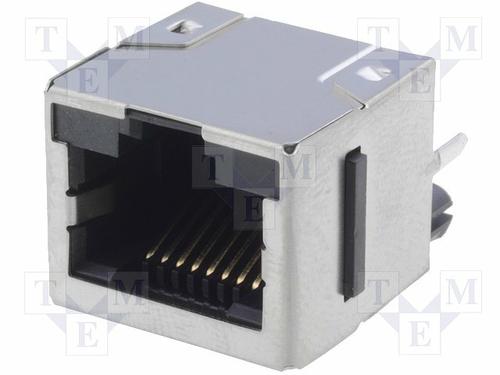

The is a CAT-5 8P8C/RJ45 EMI Quiet Modular Jack with built-in LEDs, high temperature engineering thermoplastic insulator and vertical mount, 8-position, 30µinch gold-plated phosphor bronze hard temper contacts. The modular jack features stainless steel with tin dipped tails shield, shield with top tabs. This product is ideal for LAN applications such as adapter cards and routers.

.

Tin-plated LED tails

.

20mR Maximum contact resistance

.

500MR at 500VDC for 2 minutes Maximum insulation resistance

.

1.5A Current rating

.

125VAC Voltage rating

.

1000VAC/minute at 60Hz DMV

.

Blocked LED-2 left and LED-1 right

.

-55 to + 85°C Operating temperature
