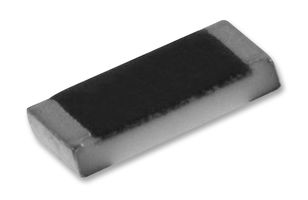

RC0603FR-071M2L

0603 格式 RC 系列 7in. 卷装（1MΩ 至 10MΩ）0603 格式表面安装卷装，1% 片式电阻器 Power rating at 70°C | 0.1W ---|--- Resistance tolerance | ± 1% Temp. coefficient | ± 200 ppm/°C 1Ω ≤ R ≤10Ω ± 100 ppm/°C 10Ω Operating temp. Range | -55°C → 155°C Operating voltage | 50V Max Jumper chip maximum resistance | Current rating at 70°C | 1A Dimensions LxWxT | 1.6 x 0.8 x 0.45 mm ### 厚膜 - 0402/0603

SMD器/芯片电阻器

得捷:
RES 1.2M OHM 1% 1/10W 0603

欧时:
Yageo RC 系列 0.1W 1.2MΩ 厚膜SMD 电阻器 RC0603FR-071M2L, ±1%, ±100ppm/°C, 0603 封装

立创商城:
1.2MΩ ±1% 100mW

e络盟:
SMD片式电阻, 厚膜, 0603 [1608公制], 1.2 Mohm, RC系列, 75 V, 厚膜, 100 mW

艾睿:
This is a RC0603FR-071M2L fixed single surface-mount resistor from Yageo. This dependable part has a power rating of 0.1 1/10 W. This product has a resistance value of 1.2M Ohm. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%.

Chip1Stop:
Res Thick Film 1.6 x 0.8 mm 1.2M Ohm 1% 0.1W1/10W 100ppm/ C Molded SMD Paper T/R

Newark:
# YAGEO PHYCOMP  RC0603FR-071M2L  Surface Mount Thick Film Resistor, RC Series, 1.2 Mohm, 100 mW, - 1%, 50 V, 0603 [1608 Metric]

儒卓力:
**RC0603 1,20M 1% 0,1W **
