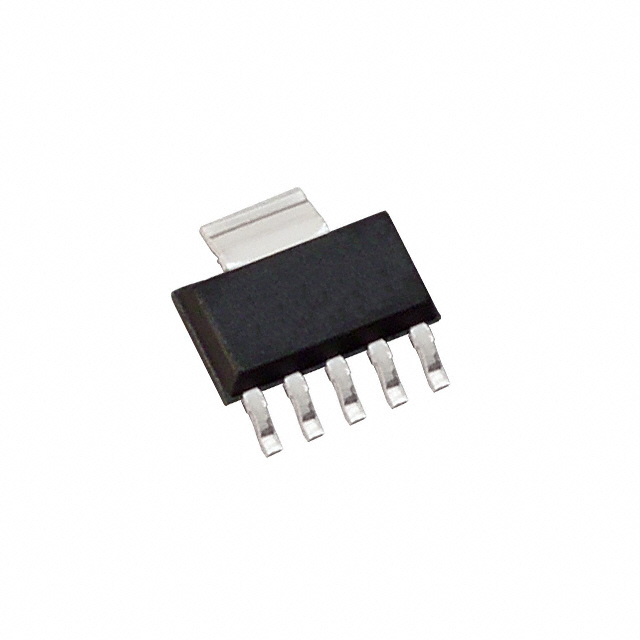

DMOS 1A低压降稳压器 DMOS 1A Low-Dropout Regulator
PMIC - 稳压器 - 线性 正 固定 1 输出 1A SOT-223-6
得捷:
IC REG LINEAR 5V 1A SOT223-6
立创商城:
REG104GA-5/2K5
德州仪器TI:
1-A, 15-V, low-dropout voltage regulator with enable
艾睿:
Never worry about components seeing unstable voltages again by implementing this LDO REG104GA-5/2K5 linear regulator manufactured by Texas Instruments. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.32@1A|0.003@10mA V. This voltage regulation device&s;s single output can produce a current up to 1 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.1 V that does not exceed 15 V. With a fixed output that has a voltage of 5 V, this is power management at its best. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. The maximum dropout voltage is 0.5@1A|0.025@10mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
LDO Regulator Pos 5V 1A 6-Pin5+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 5V 1A 6-Pin5+Tab SOT-223 T/R
Newark:
# TEXAS INSTRUMENTS REG104GA-5/2K5 Fixed LDO Voltage Regulator, 2.1V to 15V, 320mV Dropout, 5Vout, 1Aout, SOT-223-6
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 1A SOT-223-6
DeviceMart:
IC REG LDO 5V 1A SOT223-6
输出接口数 1
输入电压DC 15.0V max
输出电压 5 V
输出电流 1 A
供电电流 0.7mA ~ 1.8mA
静态电流 1.70 mA
输出电容类型 Ceramic
跌落电压 0.32V @1A
调节输出数 1
输入电压Max 15 V
输入电压Min 2.1 V
输出电压Min 5 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±2 %
输入电压 ≤15 V
安装方式 Surface Mount
引脚数 6
封装 SOT-223-6
封装 SOT-223-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REG104GA-5/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
REG104GA-5 德州仪器 | 完全替代 | REG104GA-5/2K5和REG104GA-5的区别 |
REG104GA-5G4 德州仪器 | 类似代替 | REG104GA-5/2K5和REG104GA-5G4的区别 |
REG104GA-5/2K5G4 德州仪器 | 类似代替 | REG104GA-5/2K5和REG104GA-5/2K5G4的区别 |
