RC 系列 0402 62.5 mW 4.7 Ohm 1% ±200 ppm/°C 表面贴装 厚膜 贴片电阻
SMD器/芯片电阻器
得捷:
RES 4.7 OHM 1% 1/16W 0402
欧时:
Resistor Thick Film 0402 4R7
立创商城:
4.7Ω ±1% 62.5mW
e络盟:
SMD片式电阻, 0402 [1005公制], 4.7 ohm, RC Series, 50 V, 厚膜, 63 mW
艾睿:
This is a RC0402FR-074R7L fixed single surface-mount resistor from Yageo. This durable part has a power rating of 0.063 1/16 W. This product has a resistance value of 4.7 Ohm. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep. It has a tolerance of 1%.
Chip1Stop:
Res Thick Film 1.0 x 0.5 mm 4.7 Ohm 1% 0.063W1/16W 200ppm/ C Molded SMD Paper T/R
Verical:
Res Thick Film 0402 4.7 Ohm 1% 1/16W �200ppm/C Molded SMD SMD Paper T/R
Newark:
# YAGEO PHYCOMP RC0402FR-074R7L Surface Mount Chip Resistor, Thick Film, RC Series, 4.7 ohm, 63 mW, 1%, 50 V, 0402 [1005 Metric]
儒卓力:
**RC0402 4,70R 1% 0,063W **
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.063 W
产品系列 RC
电阻 4.7 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
精度 ±1 %
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402

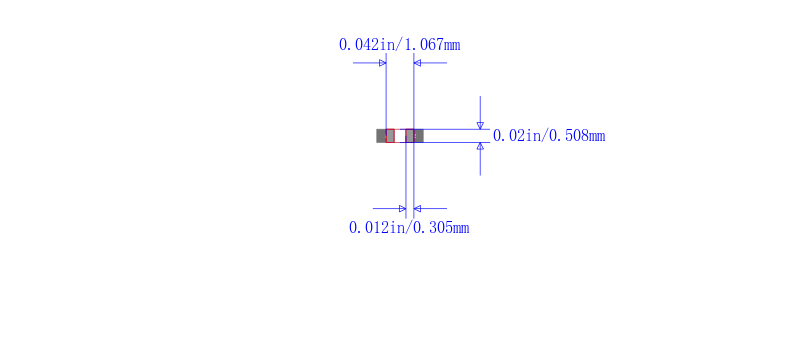

长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 10000
制造应用 工业, Industrial, Portable Devices, 便携式器材, 电源管理, Power Management, 消费电子产品, Consumer Electronics
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
RC0402FR-074R7L Yageo 国巨 | 当前型号 | 当前型号 |
9C04021A4R70FGHF3 国巨 | 完全替代 | RC0402FR-074R7L和9C04021A4R70FGHF3的区别 |
RC0402JR-074R7L 国巨 | 类似代替 | RC0402FR-074R7L和RC0402JR-074R7L的区别 |
CRCW04024R70FKED 威世 | 功能相似 | RC0402FR-074R7L和CRCW04024R70FKED的区别 |
