REF191ESZ

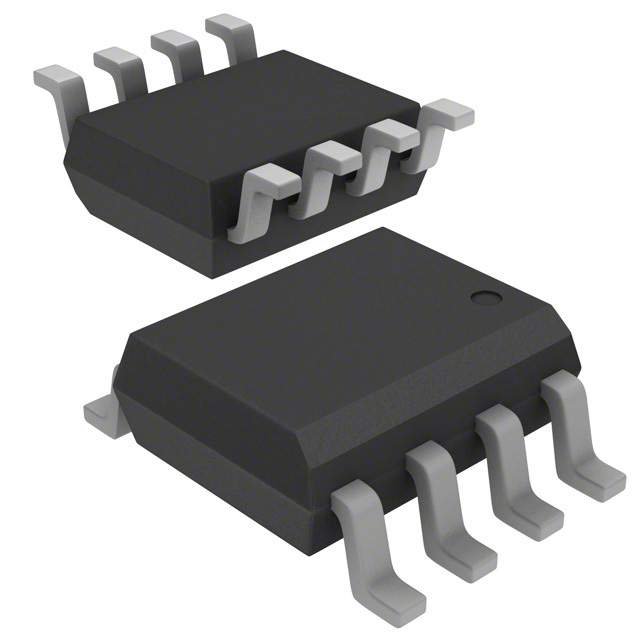

ANALOG DEVICES  REF191ESZ  电压基准, 精准微功率, 系列 - 固定, REF191系列, 2.048V, NSOIC-8

参考电压，高达 2.048V，Analog Devices

### 电压参考，Analog Devices

精密固定和可调电压参考 IC 利用串联、并联或串联/并联拓扑，并提供通孔和表面安装封装。 电压参考的初始准确度为 ±0.02 至 ±2%。

得捷:
IC VREF SERIES 0.1% 8SOIC

欧时:
Analog Devices REF191ESZ Fixed 2.048V 电压参考, 2.046 → 2.05 V输出, ±0.1 %精确度, 30mA最大输出

立创商城:
串联 2.048V 30mA

贸泽:
参考电压 2.048V Prec Micropwr LDO Low VRef

e络盟:
电压基准, 精准微功率, 系列 - 固定, REF191系列, 2.048V, NSOIC-8

艾睿:
V-Ref Precision 2.048V 30mA 8-Pin SOIC N Tube

Jameco:
Voltage Reference Precision 2.048 Volt 30 mA 8-Pin SOIC N

安富利:
The REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy. The REF19x series is made up of micropower, low dropout voltage LDV devices, providing stable output voltage from supplies as low as 100 mV above the output voltage and consuming less than 45 ?A of supply current. In sleep mode, which is enabled by applying a low TTL or CMOS level to the SLEEP pin, the output is turned off and supply current is further reduced to less than 15 ?A. The REF19x series references are specified over the extended industrial temperature range ?40Ѓ to +85Ѓ with typical performance specifications over ?40Ѓ to +125Ѓ for applications, such as automotive. All electrical grades are available in an 8-lead SOIC package; the PDIP and TSSOP packages are available only in the lowest electrical grade.

Chip1Stop:
V-Ref Precision 2.048V 30mA 8-Pin SOIC N Tube

Verical:
V-Ref Precision 2.048V 30mA 8-Pin SOIC N Tube

Newark:
# ANALOG DEVICES  REF191ESZ  Voltage Reference, Precision Micropower, Series - Fixed, REF191 Series, 2.048V, NSOIC-8
