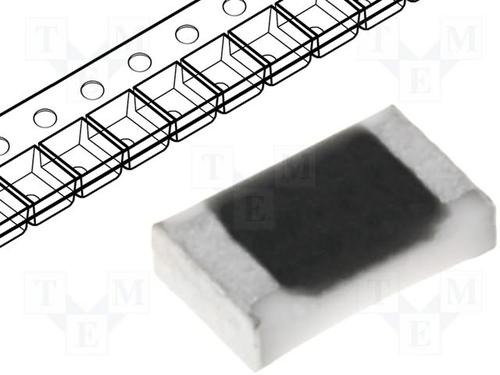

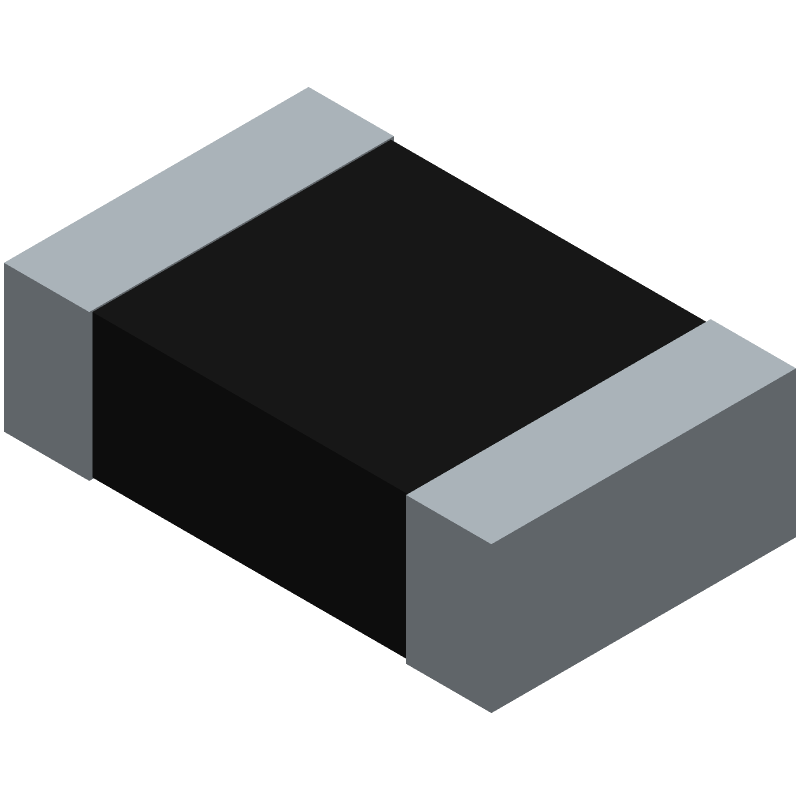

RC0805FR-0747KL

0805 格式 RC0805 系列卷装（1kΩ 至 91kΩ）以卷为单位（5000 件）出售 70°C 时功率 | 0.125 W ---|--- 温度系数 | ±100ppm/°C 工作温度 | -55°C 至 +155°C 最大工作电压 | 150V 尺寸（长x宽x厚） | 2.00 x 1.25 x 0.50 mm 跳线芯片电阻 | 0.05Ω 跳线芯片电流 | 2A（最大 5A） ### 厚膜 - 0805### 应用包括：电信设备 收音机和录音机，TV 调谐器 摄像机，表，袖珍计算器 汽车工业 计算机，仪器

SMD器/芯片电阻器

得捷:
RES 47K OHM 1% 1/8W 0805

欧时:
电阻器，SMD，0805，47K，1%，0.125W，100ppm

立创商城:
47kΩ ±1% 125mW

艾睿:
Use this RC0805FR-0747KL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 47K Ohm. This part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes thick film technology. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep.

Chip1Stop:
Res Thick Film 2.0 x 1.2 mm 47K Ohm 1% 0.125W1/8W 100ppm/ C Molded SMD Paper T/R

TME:
Resistor: thick film; SMD; 0805; 47kΩ; 0.125W; ±1%; -55÷155°C

Verical:
Res Thick Film 0805 47K Ohm 1% 0.125W1/8W ±100ppm/C Pad SMD T/R

Newark:
# YAGEO PHYCOMP  RC0805FR-0747KL  Surface Mount Thick Film Resistor, RC Series, 47 kohm, 125 mW, - 1%, 150 V, 0805 [2012 Metric]

儒卓力:
**RC0805 47K 1% 0,125W TK100 **
