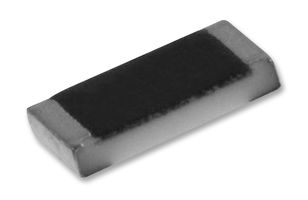

RC0805FR-071ML

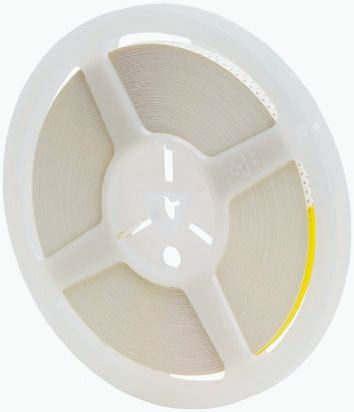

0805 格式 RC0805 系列卷装（100kΩ 至 10MΩ）以卷为单位（5000 件）出售 70°C 时功率 | 0.125 W ---|--- 温度系数 | ±100ppm/°C 工作温度 | -55°C 至 +155°C 最大工作电压 | 150V 尺寸（长x宽x厚） | 2.00 x 1.25 x 0.50 mm 跳线芯片电阻 | 0.05Ω 跳线芯片电流 | 2A（最大 5A） ### 厚膜 - 0805### 应用包括：电信设备 收音机和录音机，TV 调谐器 摄像机，表，袖珍计算器 汽车工业 计算机，仪器

SMD器/芯片电阻器

得捷:
RES 1M OHM 1% 1/8W 0805

欧时:
Yageo RC0805 系列 0.125W 1MΩ 厚膜SMD 电阻器 RC0805FR-071ML, ±1%, ±100ppm/°C, 0805 封装

立创商城:
1MΩ ±1% 125mW

艾睿:
This is a RC0805FR-071ML fixed single surface-mount resistor from Yageo. This product has a resistance value of 1M Ohm. This durable part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 1%. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C.

富昌:
RC 系列 0805 0.125 W 1 MΩ ±1% ±100 ppm/°C 表面贴装 厚膜 贴片 电阻

Chip1Stop:
Res Thick Film 2.0 x 1.2 mm 1M Ohm 1% 0.125W1/8W 100ppm/ C Molded SMD Paper T/R

TME:
Resistor: thick film; SMD; 0805; 1MΩ; 0.125W; ±1%; -55÷155°C

Verical:
Res Thick Film 0805 1M Ohm 1% 0.125W1/8W ±100ppm/C Epoxy Pad SMD T/R

Newark:
# YAGEO PHYCOMP  RC0805FR-071ML  Surface Mount Chip Resistor, Thick Film, RC Series, 1 Mohm, 125 mW, 1%, 150 V, 0805 [2012 Metric]

儒卓力:
**RC0805 1M 1% 0,125W TK100 **
