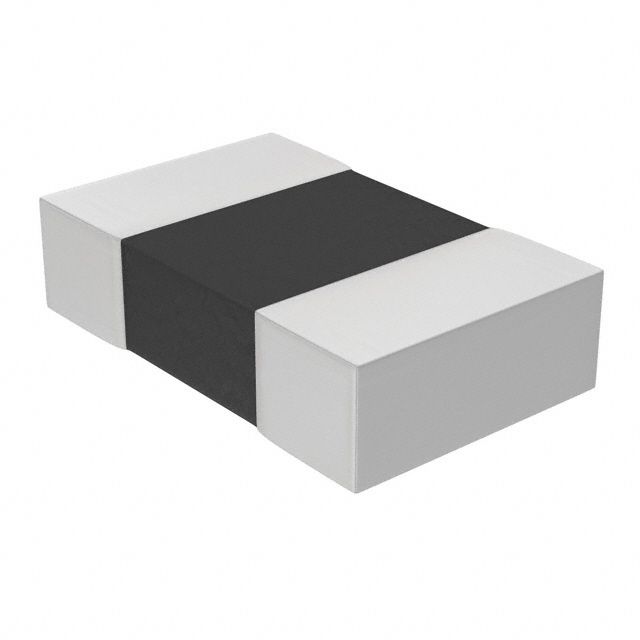

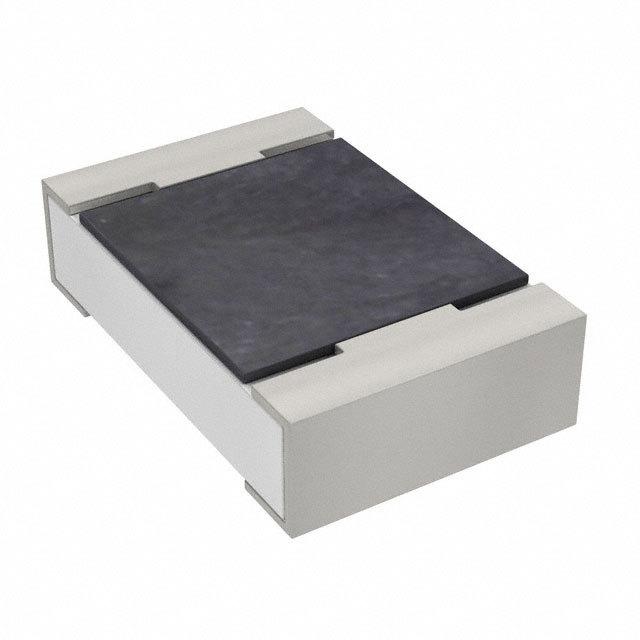

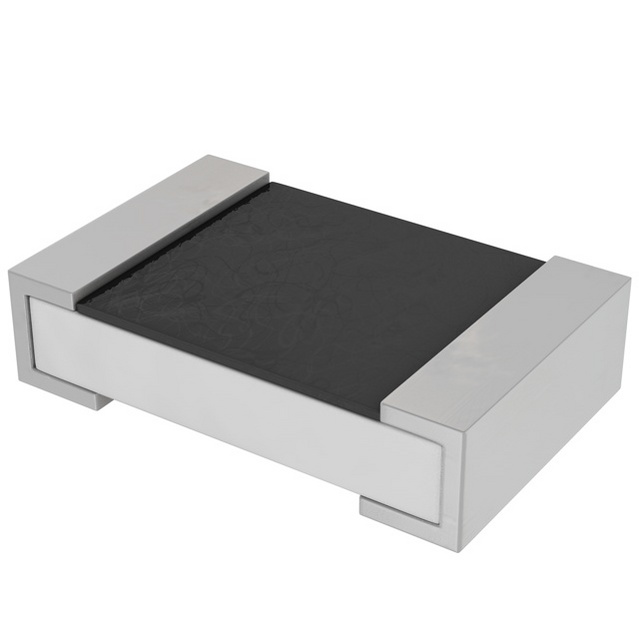

RC0805FR-0775RL图片1
RC0805FR-0775RL图片2
RC0805FR-0775RL图片3
RC0805FR-0775RL图片4
RC0805FR-0775RL图片5
RC0805FR-0775RL图片6
RC0805FR-0775RL图片7
RC0805FR-0775RL图片8
RC0805FR-0775RL图片9
RC0805FR-0775RL概述

RC 系列 0805 0.125 W 75 Ohms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻

SMD器/芯片电阻器


得捷:
RES 75 OHM 1% 1/8W 0805


欧时:
Resistor Thick film 0805 1% 75R


立创商城:
75Ω ±1% 125mW


贸泽:
Thick Film Resistors - SMD 75 OHM 1%


艾睿:
Use this RC0805FR-0775RL fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 75 Ohm. This durable part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep. This device is made with thick film technology.


Chip1Stop:
Res Thick Film 0805 75 Ohm 1% 1/8W ±100ppm/℃ Molded SMD Paper T/R


Verical:
RC0805FR-0775RL


儒卓力:
**RC0805 75,0R 1% 0,125W **


RC0805FR-0775RL中文资料参数规格
技术参数

额定电压DC 150 V

容差 ±1 %

额定功率 0.125 W

产品系列 RC

电阻 75 Ω

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

精度 ±1 %

额定电压 150 V

封装参数

安装方式 Surface Mount

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.25 mm

高度 0.5 mm

封装公制 2012

封装 0805

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

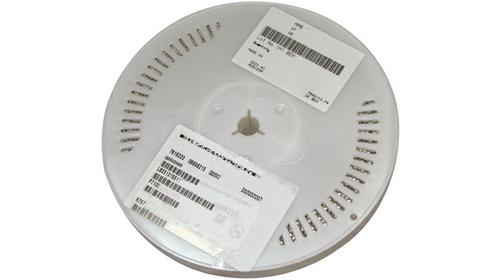

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

RC0805FR-0775RL引脚图与封装图

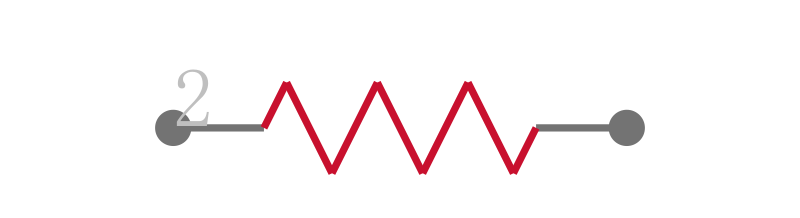

RC0805FR-0775RL引脚图

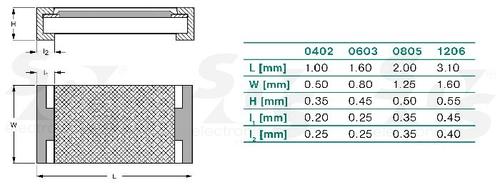

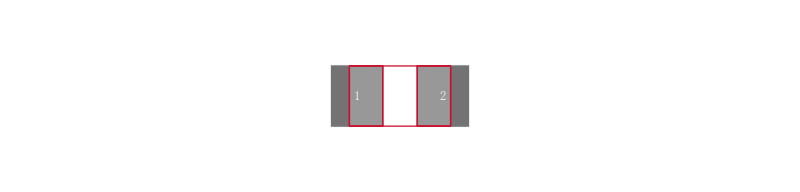

RC0805FR-0775RL封装图

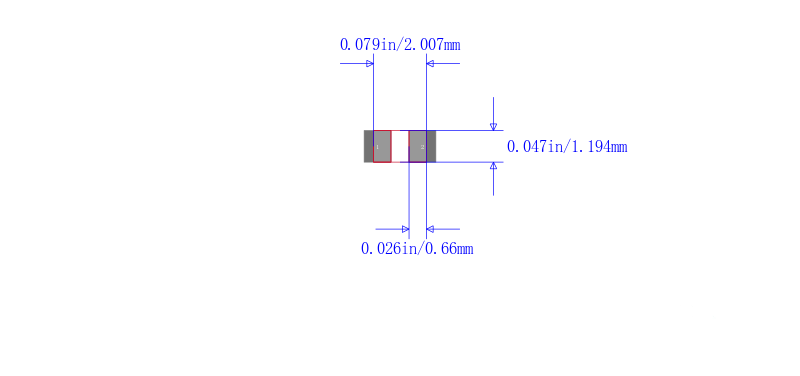

RC0805FR-0775RL封装焊盘图
在线购买RC0805FR-0775RL
型号: RC0805FR-0775RL
制造商: Yageo 国巨
描述:RC 系列 0805 0.125 W 75 Ohms 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
替代型号RC0805FR-0775RL
型号/品牌 代替类型 替代型号对比

RC0805FR-0775RL

Yageo 国巨

当前型号

当前型号

9C08052A75R0FKHFT

国巨

完全替代

RC0805FR-0775RL和9C08052A75R0FKHFT的区别

RC0805FR-0775R

国巨

完全替代

RC0805FR-0775RL和RC0805FR-0775R的区别

RC0805FR-1075R

国巨

完全替代

RC0805FR-0775RL和RC0805FR-1075R的区别
