500毫安低压差稳压器 500mA Low-Dropout Regulator
Linear Voltage Regulator IC 1 Output 500mA 8-SOIC
得捷:
IC REG LINEAR 5V 500MA 8SOIC
立创商城:
REG103UA-5/2K5
德州仪器TI:
500-mA, 15-V, low-dropout voltage regulator with power good & enable
贸泽:
LDO Voltage Regulators DMOS 500mA LDO Reg
艾睿:
This LDO REG103UA-5/2K5 linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.003@10mA|0.16@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.1 V that does not exceed 15 V. With a fixed output that has a voltage of 5 V, this is power management at its best. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. The maximum dropout voltage is 0.025@10mA|0.25@500mA V. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -55 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 5V 0.5A 8-Pin SOIC T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 500mA, Fixed5.0V, Low Noise, Fast Transient Response LDO Regulator Pos 5V 0.5A 8-Pin SOIC T/R
Verical:
LDO Regulator Pos 5V 0.5A 8-Pin SOIC T/R
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 500mA 8-SOIC
输出接口数 1
输出电压 5 V
输出电流 500 mA
供电电流 0.7mA ~ 1.3mA
静态电流 1.00 mA
输出电容类型 Ceramic
跌落电压 115 mV
调节输出数 1
输入电压Max 15 V
输入电压Min 2.1 V
输出电压Min 5 V
输出电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min 40 ℃
精度 ±2 %
输入电压 ≤15 V
安装方式 Surface Mount

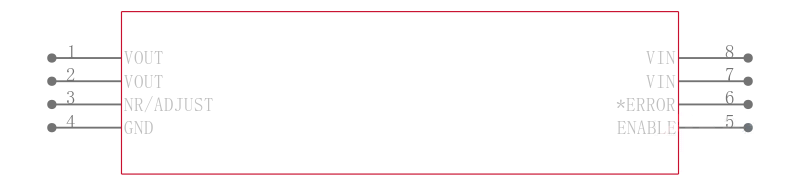

引脚数 8
封装 SOIC-8
长度 4.9 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REG103UA-5/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
REG103UA-5G4 德州仪器 | 完全替代 | REG103UA-5/2K5和REG103UA-5G4的区别 |
REG103UA-5 德州仪器 | 类似代替 | REG103UA-5/2K5和REG103UA-5的区别 |
REG103UA-5/2K5G4 德州仪器 | 类似代替 | REG103UA-5/2K5和REG103UA-5/2K5G4的区别 |
