REF01HN8

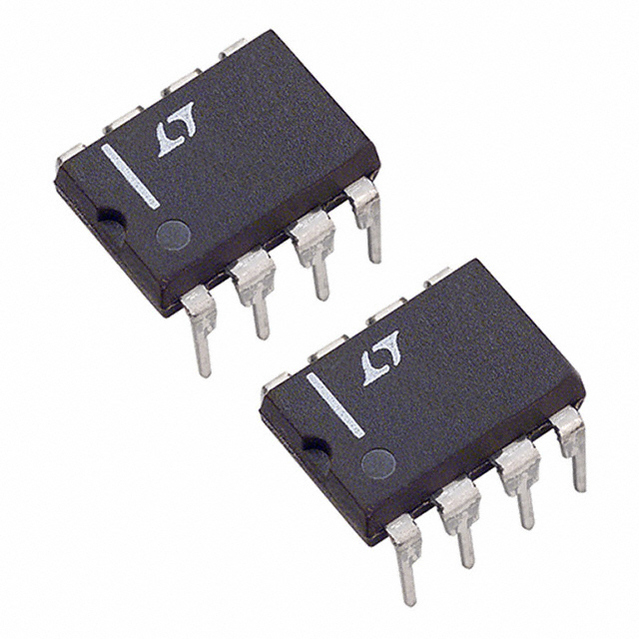

V-Ref Precision 10V 20mA 8Pin PDIP N

DESCRIPTION

The REF-01/REF-02 are precision 10V and 5V bandgap references which provide stable output voltages over a wide range of operating conditions. Output voltage is accurate to ±0.3% with a low 5ppm/°C typical temperature coeffi cient. The REF-01 and REF-02 are excellent choices for applications where low drift, moderate accuracy, low power consumption and low cost are considerations.

The REF-02 includes a temperature output pin which provides a linear voltage proportional to absolute tem perature.

FEATURES

■ Trimmed Output ±0.3%

■ Low Drift—5ppm/°C Typ

■ Low Noise—3ppmP-P

■ High Line Rejection

■ Temperature Output—REF-02

■ Low Supply Current 1.4mA Max

APPLICATIONS

■ A/D and D/A Converters

■ Precision Regulators

■ Constant Current Sources

■ V/F Converters

■ Bridge Excitation
