RC0805FR-078K25L

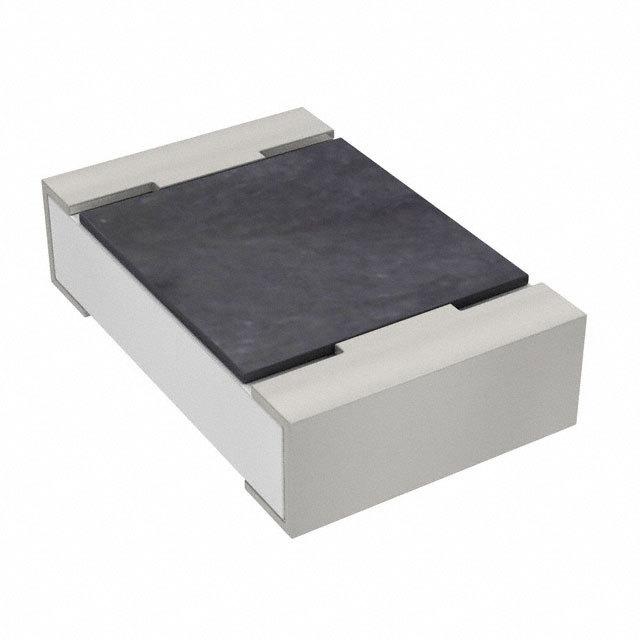

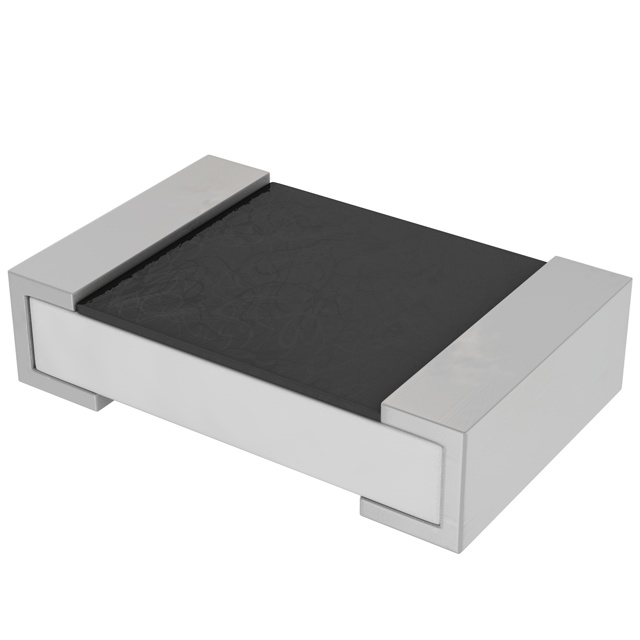

RC0805FR-078K25L图片1
RC0805FR-078K25L图片2
RC0805FR-078K25L图片3
RC0805FR-078K25L图片4
RC0805FR-078K25L图片5
RC0805FR-078K25L图片6
RC0805FR-078K25L图片7
RC0805FR-078K25L图片8
RC0805FR-078K25L图片9
RC0805FR-078K25L概述

RC 系列 0805 0.125 W 8.25 kohm 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻

SMD器/芯片电阻器


得捷:
RES 8.25K OHM 1% 1/8W 0805


立创商城:
8.25kΩ ±1% 125mW


艾睿:
Use this RC0805FR-078K25L fixed single surface-mount resistor from Yageo to obtain a visually clean layout. This product has a resistance value of 8.25K Ohm. This durable part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 2 mm long, 0.5 mm tall and 1.25 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology.


TME:
Resistor: thick film; SMD; 0805; 8.25kΩ; 0.125W; ±1%; -55÷155°C


Verical:
Res Thick Film 0805 8.25K Ohm 1% 0.125W1/8W ±100ppm/C Pad SMD T/R


儒卓力:
**RC0805 8,25K 1% 0,125W **


RC0805FR-078K25L中文资料参数规格
技术参数

额定电压DC 150 V

容差 ±1 %

额定功率 0.125 W

产品系列 RC

电阻 8.25 kΩ

阻值偏差 ±1 %

工作温度Max 155 ℃

工作温度Min -55 ℃

精度 ±1 %

封装参数

安装方式 Surface Mount

封装公制 2012

封装 0805

外形尺寸

长度 2 mm

宽度 1.25 mm

高度 0.5 mm

封装公制 2012

封装 0805

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

RC0805FR-078K25L引脚图与封装图
RC0805FR-078K25L引脚图

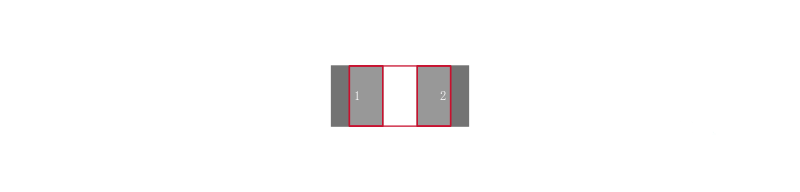

RC0805FR-078K25L封装图

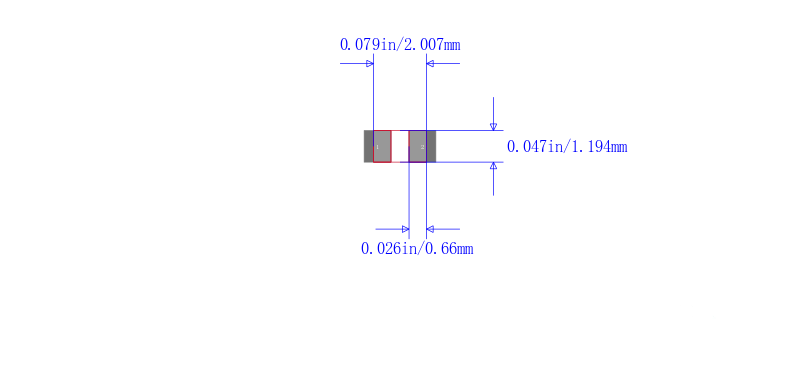

RC0805FR-078K25L封装焊盘图
在线购买RC0805FR-078K25L
型号: RC0805FR-078K25L
制造商: Yageo 国巨
描述:RC 系列 0805 0.125 W 8.25 kohm 1% ±100 ppm/°C 表面贴装 厚膜 贴片电阻
替代型号RC0805FR-078K25L
型号/品牌 代替类型 替代型号对比

RC0805FR-078K25L

Yageo 国巨

当前型号

当前型号

9C08052A8251FKHFT

国巨

完全替代

RC0805FR-078K25L和9C08052A8251FKHFT的区别

CRCW08058K25FKEA

威世

功能相似

RC0805FR-078K25L和CRCW08058K25FKEA的区别

ERJ6ENF8251V

松下

功能相似

RC0805FR-078K25L和ERJ6ENF8251V的区别
