DMOS 1A低压降稳压器 DMOS 1A Low-Dropout Regulator
Linear Voltage Regulator IC 1 Output 1A SOT-223-6
得捷:
IC REG LINEAR POS ADJ 1A SOT223
立创商城:
REG104GA-A/2K5
德州仪器TI:
1-A, 15-V, low-dropout voltage regulator with enable
贸泽:
LDO Voltage Regulators DMOS 1A Low Dropout Regulator
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO REG104GA-A/2K5 linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 0.003@10mA|0.23@1A V. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 1 A. This will operate at a minimum voltage of 2.1 V and a maximum voltage of 15 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 1.295 to 5.5 V, this is power management at its best. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its polarity is positive. The maximum dropout voltage is 0.025@10mA|0.4@1A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C.
安富利:
LDO Regulator Pos 1.295V to 5.5V 1A 6-Pin5+Tab SOT-223 T/R
Chip1Stop:
Single Channel LDO Single Output LDO, 1.0A, Adj.1.295 to 5.5V, Low Noise, Fast Transient Response LDO Regulator Pos 1.295V to 5.5V 1A 6-Pin5+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 1.295V to 5.5V 1A 6-Pin5+Tab SOT-223 T/R
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.295 V ~ 5.5 V 1A SOT-223-6
输出接口数 1
输出电压 1.295V ~ 5.5V
输出电流 1 A
静态电流 1.70 mA
输出电容类型 Ceramic
跌落电压 0.23V @1A
调节输出数 1
输入电压Max 15 V
输入电压Min 2.1 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 2 %
输入电压 2.1V ~ 15V
安装方式 Surface Mount
引脚数 6

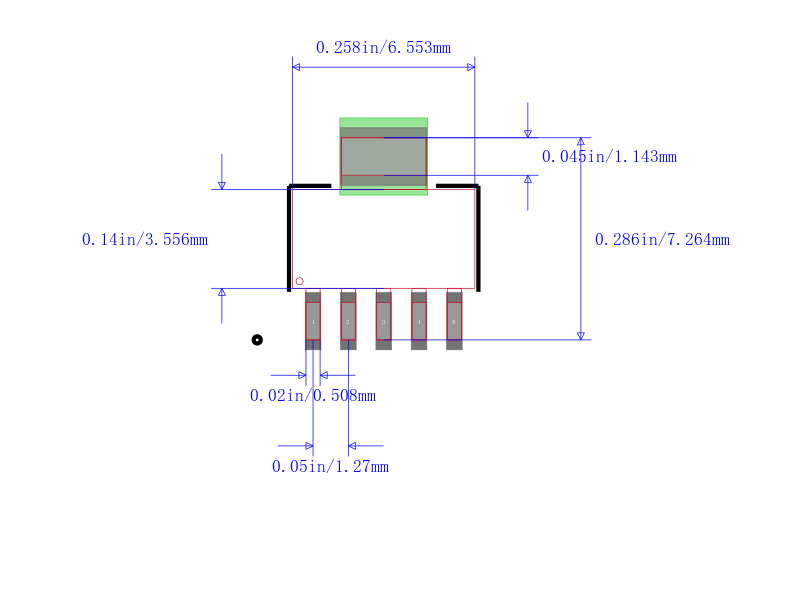

封装 SOT-223-6
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 SOT-223-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
REG104GA-A/2K5 TI 德州仪器 | 当前型号 | 当前型号 |
REG104GA-A 德州仪器 | 类似代替 | REG104GA-A/2K5和REG104GA-A的区别 |
REG104GA-A/2K5G4 德州仪器 | 类似代替 | REG104GA-A/2K5和REG104GA-A/2K5G4的区别 |
REG104GA-AG4 德州仪器 | 类似代替 | REG104GA-A/2K5和REG104GA-AG4的区别 |
