RE936-08

RE936-08 多用途适配器 TSSOP24 / SSOP24适配电路板，用于 TSSOP24 和 SSOP24，带 1.27 mm 节距 环氧玻璃纤维 FR4 1.50 mm 双面 35 μm 铜 电镀通孔 PTH 表面化学处理 镍/金 焊接停止掩膜 孔间隔 2.54 mm 两个试验区，带 2 x 3 方形垫 2.20 x 2.20 mm 屏蔽垫和冷却垫 ### 表面安装板

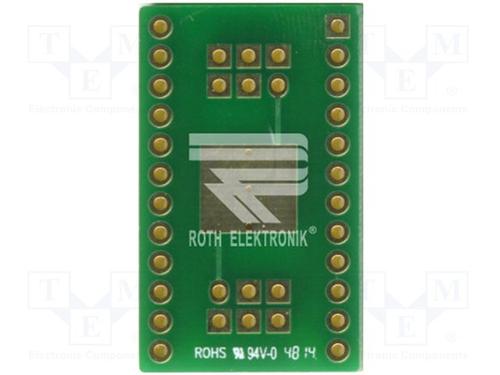

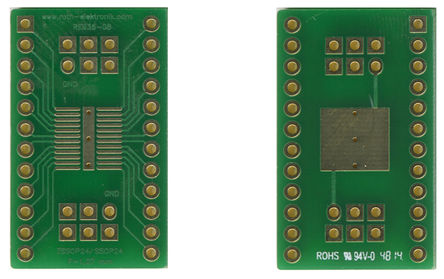

The is a 31.75 x 19.05mm Adaption Circuit Board, made of 1.5mm epoxy fibreglass and 35µm Cu double-sided construction with Ni/Au surface. This 1.27mm circuit board features solder stop mask and comes with shield pad and cooling pad. This plated through hole multi adapter circuit board suitable for TSSOP24 and SSOP24 devices.

.

2.54 and 1.27mm Hole spacing

.

2.2 x 2.2mm Two experimenting areas with 2 x 3 square pads
